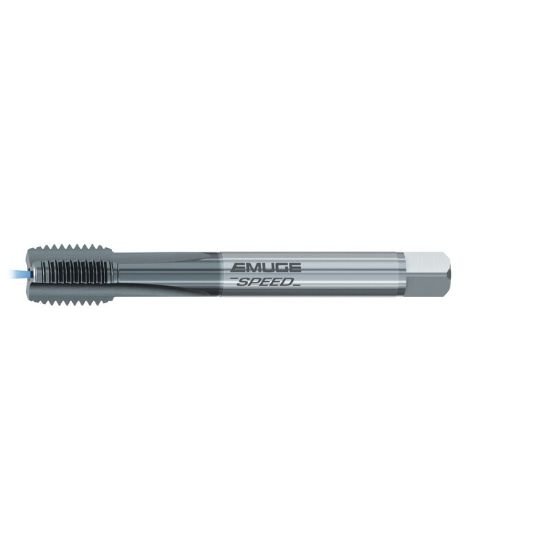

Picture of Emuge C3169401.0116 Tap Bottoming M16-2.00mm 6H Metric DIN/DIn Coolant HSSE TiCN

Emuge C3169401.0116 Tap Bottoming M16-2.00mm 6H Metric DIN/DIn Coolant HSSE TiCN

Part Number: EMUC3169401.0116 ISO: C3169401.0116
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
Call (262) 251-4020 for pricing
SKU: 1158766

Description

EMUGE C3169401.0116 M16x2.00MM Cut Straight Flute Bottoming 1.5P-2.0P HSSE TiCN 6H Metric
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Coolant Thru Thru Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type METRIC
Flute Direction STRAIGHT
Tap Style Cut Straight Flute
Tap Type Bottoming
Tap Chamfer 1.5P-2.0P
Dimensions & Sizing
Overall Length 4.3307 110.00MM
Shank/Pilot Dia 0.4720 11.99MM
Thread Pitch 2.00MM
Thread Size M16
Tap Drill Range 0.5480 13.92MM - 0.5685 14.44MM
Tap Square 0.3600
Performance & Capacity
Cut Rating Stainless Steel, <40HRC Steel
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit 6H
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE
Coating TICN
Standards & Identification
Dimension Standard DIN/DIN
