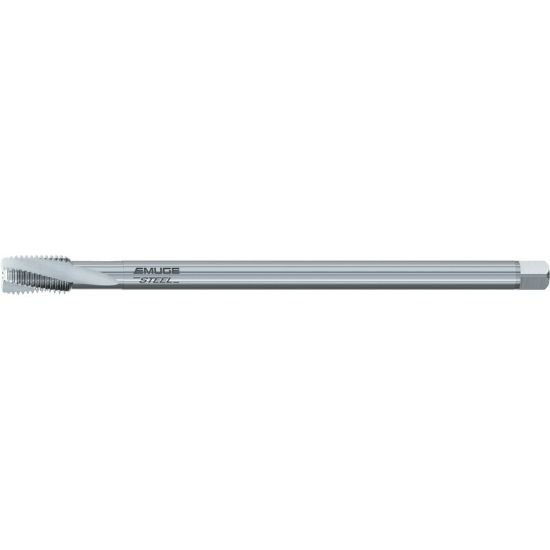

Picture of Emuge C2461000.0120 Tap Bottoming M20-2.50mm 6H Metric DIN/DIn HSSE Pulley Long

Emuge C2461000.0120 Tap Bottoming M20-2.50mm 6H Metric DIN/DIn HSSE Pulley Long

Part Number: EMUC2461000.0120 ISO: C2461000.0120

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1157444
Vendor: Sussex Tool and Supply
$346.52
EMUGE C2461000.0120 M20x2.50MM Cut Spiral Flute Bottoming 1.5P-2.0P HSSE Uncoated 6H Metric Steel
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Taping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating Stainless Steel, <40HRC Steel
Overall Length 11.0236 280.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.6290 15.98MM
Type Of Tool Tap
Length Type LONG
Performance Rating High Performance
Thread Pitch 2.50MM
Thread Type METRIC
Flute Direction RIGHT
Thread Size M20
Thread Limit 6H
Tap Style Cut Spiral Flute
Tap Type Bottoming
Dimension Standard DIN/DIN
Tap Drill Range 0.6850 17.40MM - 0.7106 18.05MM
Tap Square 0.4890
Tap Chamfer 1.5P-2.0P
Multi Spindle Yes
