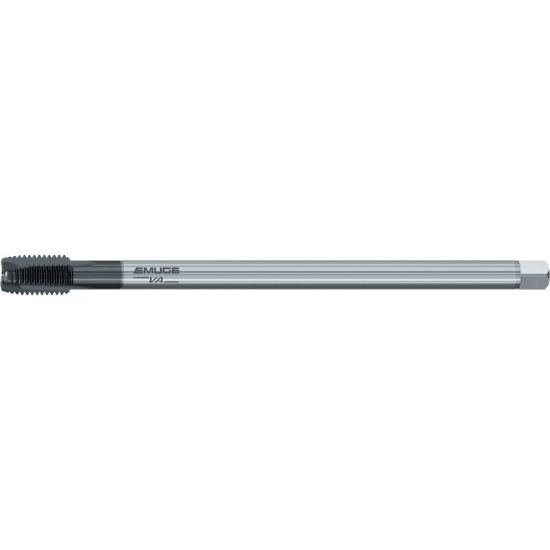

Picture of Emuge C220C300.0060 Tap Plug M6-1.00mm 6H Metric DIN/DIn HSSE GLT-1 Pulley Long

Emuge C220C300.0060 Tap Plug M6-1.00mm 6H Metric DIN/DIn HSSE GLT-1 Pulley Long

Part Number: EMUC220C300.0060

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1157424
Vendor: Sussex Tool and Supply
$0.00
High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.
Products specifications
Attribute name Attribute value
Tap Drill Range 0.1953 4.96MM - 0.2055 5.22MM
Dimension Standard DIN/DIN
Shank Or Pilot Diameter 0.1770 4.50MM - #16
Thread Limit 6H
Cutter Type Taping
Tap Square 0.1910
Length Type LONG
Performance Rating High Performance
Tap Style Cut Spiral Point
Overall Length 6.2992 160.00MM
Machine Side (Toolpost) TAP0.134x0.177
Cutting Edge Definition since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, V, the X component is present in excess of 7%, W or Mo, along with more than 0.60% carbon., and Co. These steels are mainly used for cutting tools
Type of Tool Tap
Machine Side (Toolpost) Connection Type Tap Collet
Shipping State MASSACHUSETTS
Family Group Long Shank Taps
Cutting Edge Material HSSE
Tool Material Steel
Coating GLT-1
Coolant Thru Non Coolant
Tap Type Plug
Flute Direction Straight
Thread Type Metric
Made In USA No
Thread Size M6
Thread Pitch 1.00MM
Tap Chamfer 4P-5P
