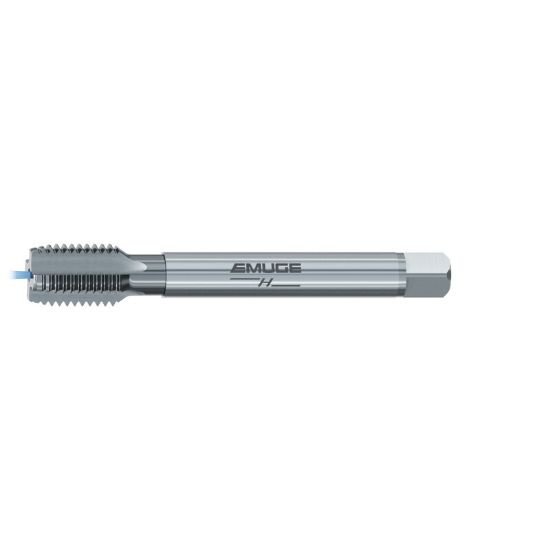

Picture of Emuge C1960901.4037 Tap 3/8-19.00TPI Pipe BSP DIN/DIn 1.5P-2.0P Coolant Cobalt Carbide

Emuge C1960901.4037 Tap 3/8-19.00TPI Pipe BSP DIN/DIn 1.5P-2.0P Coolant Cobalt Carbide

Part Number: EMUC1960901.4037

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1157845
Vendor: Sussex Tool and Supply
$766.38
Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.
Products specifications
Attribute name Attribute value
Tap Drill Range 0.6004 15.25MM
Dimension Standard DIN/DIN
Shank Or Pilot Diameter 0.4720 11.99MM
Thread Limit PIPE
Cutter Type Taping
Tap Square 0.3540
Length Type STANDARD
Performance Rating High Performance
Tap Style Pipe Straight Flute
Overall Length 3.9370 100.00MM
Machine Side (Toolpost) TAP0.354x0.472
Cutting Edge Definition or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance., as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), Cemented carbides are a class of hard materials used extensively for cutting tools
Type of Tool Tap
Machine Side (Toolpost) Connection Type Tap Collet
Shipping State MASSACHUSETTS
Family Group Pipe Taps
Cutting Edge Material Carbide
Tool Material Steel
Coolant Thru Thru Coolant
Tap Type Pipe
Flute Direction Straight
Thread Type BSP
Made In USA No
Thread Size 3/8"
Thread Pitch 19.00TPI
Tap Chamfer 1.5P-2.0P
