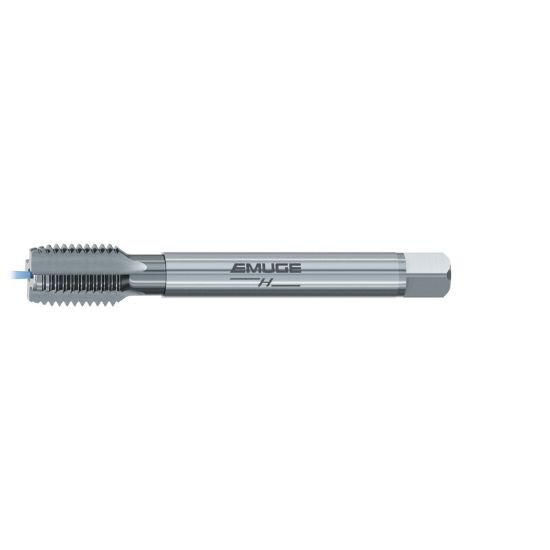

Emuge C1950901.0422 Tap M20-1.50mm Mod Bottom Metric DIN/DIn 2.0P-3.0P Coolant Carbide

Part Number: EMUC1950901.0422

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1156230
$789.37
Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.
Products specifications
Attribute name Attribute value
Tap Drill Range 0.7299 18.54MM - 0.7413 18.83MM
Dimension Standard DIN/DIN
Shank Or Pilot Diameter 0.6290 15.98MM
Thread Limit 6H
Cutter Type Taping
Tap Square 0.4890
Length Type STANDARD
Performance Rating High Performance
Tap Style Cut Straight Flute
Overall Length 4.9213 125.00MM
Machine Side (Toolpost) TAP0.472x0.630
Cutting Edge Definition or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance., as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), Cemented carbides are a class of hard materials used extensively for cutting tools
Type of Tool Tap
Machine Side (Toolpost) Connection Type Tap Collet
Shipping State MASSACHUSETTS
Family Group Coolant Fed - Thru & Blind
Cutting Edge Material Carbide
Tool Material Steel
Coolant Thru Thru Coolant
Tap Type Mod Bottom
Flute Direction Straight
Thread Type Metric
Made In USA No
Thread Size M20
Thread Pitch 1.50MM
Tap Chamfer 2.0P-3.0P
