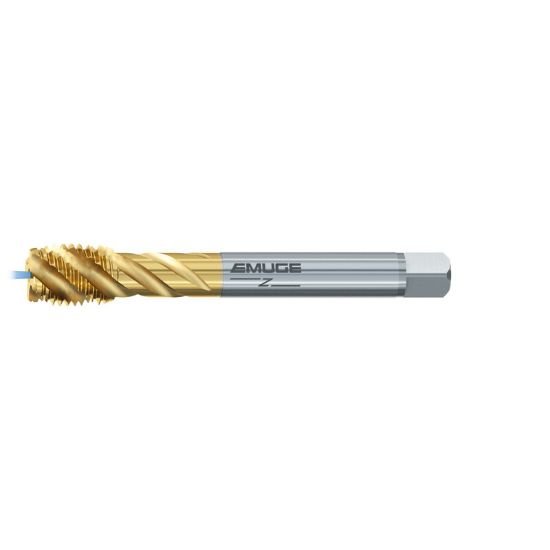

Picture of Emuge C0973700.0390 Tap Bottoming M18-1.50mm 6H Metric DIN/DIn Coolant HSSE TiN

Emuge C0973700.0390 Tap Bottoming M18-1.50mm 6H Metric DIN/DIn Coolant HSSE TiN

Part Number: EMUC0973700.0390

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1155988
Vendor: Sussex Tool and Supply
$0.00
High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.
Products specifications
Attribute name Attribute value
Tap Drill Range 0.6472 16.44MM - 0.6626 16.83MM
Dimension Standard DIN/DIN
Shank Or Pilot Diameter 0.5510 14.00MM
Thread Limit 6H
Cutter Type Taping
Tap Square 0.3600
Length Type STANDARD
Performance Rating High Performance
Tap Style Cut Spiral Flute
Overall Length 4.3307 110.00MM
Machine Side (Toolpost) TAP0.433x0.551
Cutting Edge Definition since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, V, the X component is present in excess of 7%, W or Mo, along with more than 0.60% carbon., and Co. These steels are mainly used for cutting tools
Type of Tool Tap
Machine Side (Toolpost) Connection Type Tap Collet
Shipping State MASSACHUSETTS
Family Group Coolant Fed - Blind Hole
Cutting Edge Material HSSE
Tool Material Steel
Coating TIN
Coolant Thru Thru Coolant
Tap Type Bottoming
Thread Type Metric
Made In USA No
Thread Size M18
Thread Pitch 1.50MM
Tap Chamfer 1.5P-2.0P
