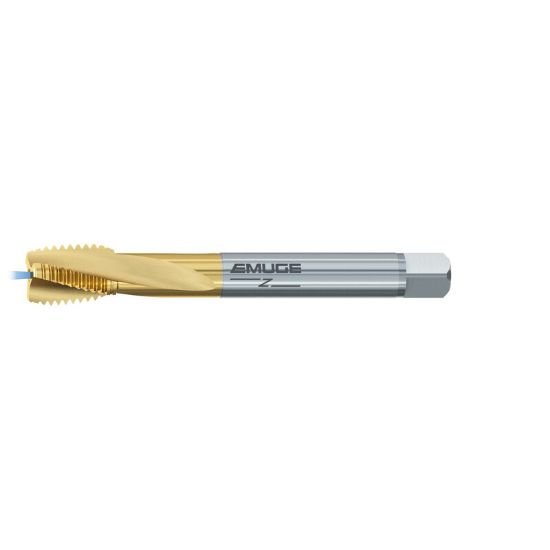

Picture of Emuge C0963701.0114 Tap Mod Bottom M14-2.00mm 6H Metric DIN/DIn Coolant HSSE TiN

Emuge C0963701.0114 Tap Mod Bottom M14-2.00mm 6H Metric DIN/DIn Coolant HSSE TiN

Part Number: EMUC0963701.0114

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1156006
Vendor: Sussex Tool and Supply
$0.00
High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.
Products specifications
Attribute name Attribute value
Tap Drill Range 0.4693 11.92MM - 0.4898 12.44MM
Dimension Standard DIN/DIN
Shank Or Pilot Diameter 0.4330 11.00MM
Thread Limit 6H
Cutter Type Taping
Tap Square 0.3220
Length Type STANDARD
Performance Rating High Performance
Tap Style Cut Spiral Flute
Overall Length 3.9370 100.00MM
Multi Spindle Yes
Machine Side (Toolpost) TAP0.354x0.433
Cutting Edge Definition since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, V, the X component is present in excess of 7%, W or Mo, along with more than 0.60% carbon., and Co. These steels are mainly used for cutting tools
Type of Tool Tap
Machine Side (Toolpost) Connection Type Tap Collet
Shipping State MASSACHUSETTS
Family Group Coolant Fed - Blind Hole
Cutting Edge Material HSSE
Tool Material Steel
Coating TIN
Coolant Thru Thru Coolant
Tap Type Mod Bottom
Thread Type Metric
Made In USA No
Thread Size M14
Thread Pitch 2.00MM
Tap Chamfer 2.0P-3.0P
