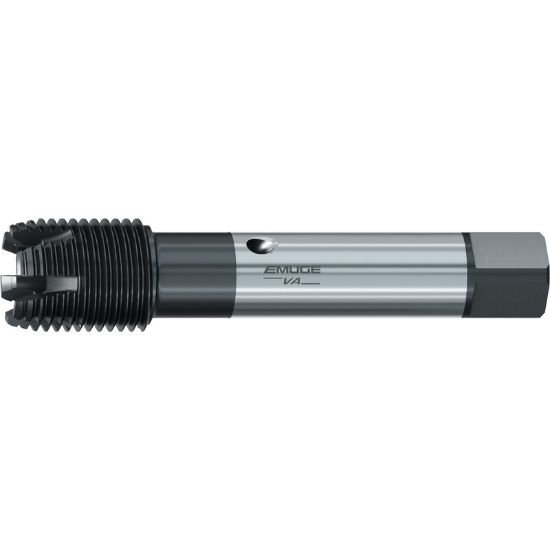

Picture of Emuge C0803001.0682 Tap M64-4.00mm Mod Bottom Metric DIN/DIn 2.0P-3.0P Cobalt HSSE Oxide + TiN

Emuge C0803001.0682 Tap M64-4.00mm Mod Bottom Metric DIN/DIn 2.0P-3.0P Cobalt HSSE Oxide + TiN

Part Number: EMUC0803001.0682

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1158490
Vendor: Sussex Tool and Supply
$3,586.35
High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.
Products specifications
Attribute name Attribute value
Tap Drill Range 2.3559 59.84MM - 2.3969 60.88MM
Dimension Standard DIN/DIN
Shank Or Pilot Diameter 1.9680 49.99MM
Thread Limit 6H
Cutter Type Taping
Tap Square 1.5350
Length Type STANDARD
Performance Rating High Performance
Tap Style Cut Straight Flute
Overall Length 12.4016 315.00MM
Machine Side (Toolpost) TAP1.535x1.968
Cutting Edge Definition since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, V, the X component is present in excess of 7%, W or Mo, along with more than 0.60% carbon., and Co. These steels are mainly used for cutting tools
Type of Tool Tap
Machine Side (Toolpost) Connection Type Tap Collet
Shipping State MASSACHUSETTS
Family Group ROBUST Taps
Cutting Edge Material HSSE
Tool Material Steel
Coating Oxide + TiN
Coolant Thru Non Coolant
Tap Type Mod Bottom
Flute Direction Straight
Thread Type Metric
Made In USA No
Thread Size M64
Thread Pitch 4.00MM
Tap Chamfer 2.0P-3.0P
