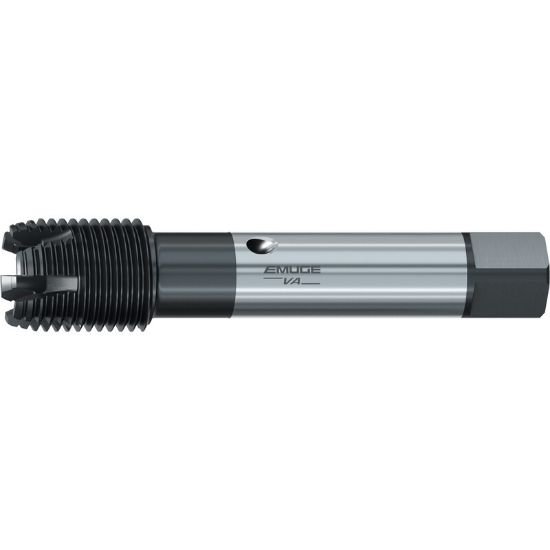

Picture of Emuge C0803001.0532 Tap M36-1.50mm Mod Bottom Metric DIN/DIn 2.0P-3.0P Cobalt HSSE Oxide + TiN

Emuge C0803001.0532 Tap M36-1.50mm Mod Bottom Metric DIN/DIn 2.0P-3.0P Cobalt HSSE Oxide + TiN

Part Number: EMUC0803001.0532 ISO: C0803001.0532

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1158472
Vendor: Sussex Tool and Supply
$1,046.23
EMUGE C0803001.0532 M36x1.50MM Cut Straight Flute Mod Bottom 2.0P-3.0P HSSE Oxide + TiN 6H Metric Steel TiN is a clear step up from even high quality oxide coating. Its around 20% harder, and is significantly smoother and resistant to BUE
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Taping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating <48HRC Steel, Stainless Steel, High Temp
Coating Oxide + TiN
Overall Length 6.6929 170.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 1.1024 28.00MM
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 1.50MM
Thread Type METRIC
Flute Direction STRAIGHT
Thread Size M36
Thread Limit 6H
Tap Style Cut Straight Flute
Tap Type Mod Bottom
Dimension Standard DIN/DIN
Tap Drill Range 1.3559 34.44MM - 1.3713 34.83MM
Tap Square 0.9250
Tap Chamfer 2.0P-3.0P
