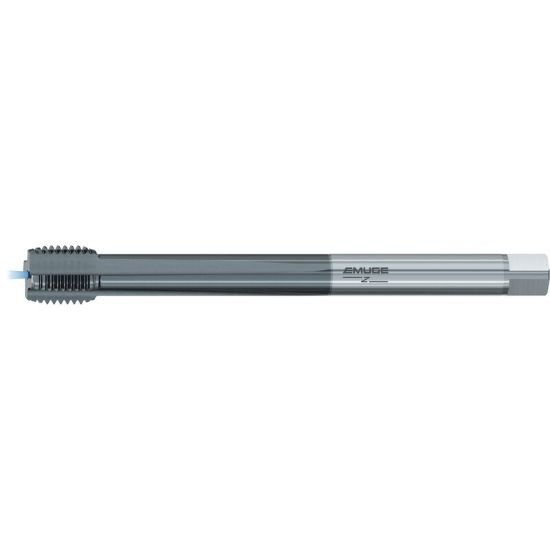

Picture of Emuge C0539401.0145 Tap Mod Bottom M45-4.50mm 6H Metric DIN/DIn Coolant HSSE TiCN

Emuge C0539401.0145 Tap Mod Bottom M45-4.50mm 6H Metric DIN/DIn Coolant HSSE TiCN

Part Number: EMUC0539401.0145 ISO: C0539401.0145

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1156358
Vendor: Sussex Tool and Supply
$1,975.08
EMUGE C0539401.0145 M45x4.50MM Cut Straight Flute Mod Bottom 2.0P-3.0P HSSE TiCN 6H Metric Steel Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Taping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating Gray Iron, Ductile Iron
Coating TICN
Overall Length 14.1732 360.00MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 1.4170 35.99MM
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 4.50MM
Thread Type METRIC
Flute Direction STRAIGHT
Thread Size M45
Thread Limit 6H
Tap Style Cut Straight Flute
Tap Type Mod Bottom
Dimension Standard DIN/DIN
Tap Drill Range 1.5874 40.32MM - 1.6335 41.49MM
Tap Square 1.1410
Tap Chamfer 2.0P-3.0P
