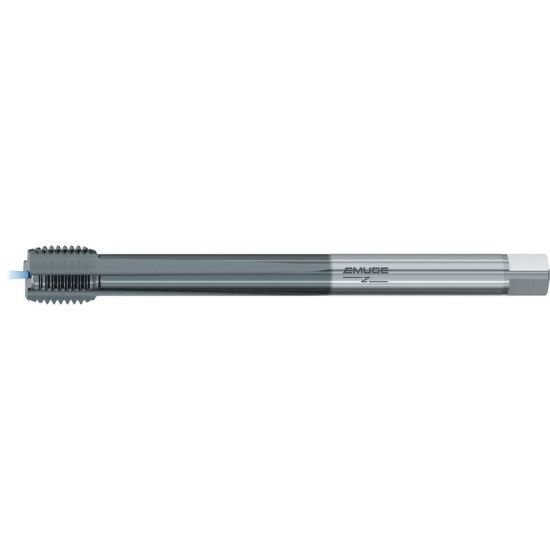

Picture of Emuge C0539401.0136 Tap Mod Bottom M36-4.00mm 6H Metric DIN/DIn Coolant HSSE TiCN

Emuge C0539401.0136 Tap Mod Bottom M36-4.00mm 6H Metric DIN/DIn Coolant HSSE TiCN

Part Number: EMUC0539401.0136 ISO: C0539401.0136
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$1,153.75
SKU: 1156356

Description

EMUGE C0539401.0136 M36x4.00MM Cut Straight Flute Mod Bottom 2.0P-3.0P HSSE TiCN 6H Metric
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Coolant Thru Thru Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type METRIC
Flute Direction STRAIGHT
Tap Style Cut Straight Flute
Tap Type Mod Bottom
Tap Chamfer 2.0P-3.0P
Dimensions & Sizing
Overall Length 12.2047 310.00MM
Shank/Pilot Dia 1.1024 28.00MM
Thread Pitch 4.00MM
Thread Size M36
Tap Drill Range 1.2535 31.84MM - 1.2945 32.88MM
Tap Square 0.9250
Performance & Capacity
Cut Rating Gray Iron, Ductile Iron
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit 6H
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE
Coating TICN
Standards & Identification
Dimension Standard DIN/DIN
