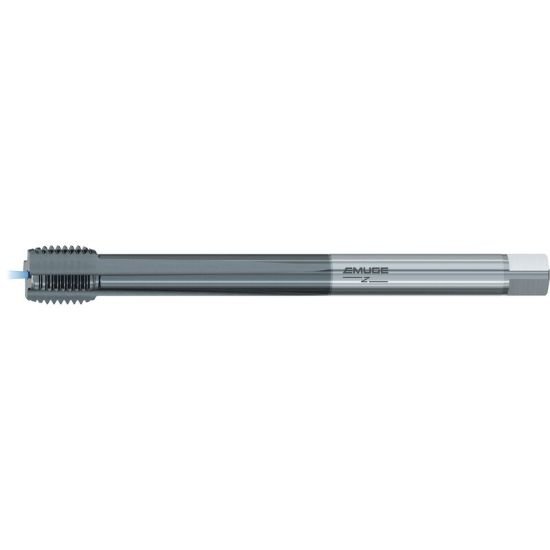

Picture of Emuge C0539401.0133 Tap Mod Bottom M33-3.50mm 6H Metric DIN/DIn Coolant HSSE TiCN

Emuge C0539401.0133 Tap Mod Bottom M33-3.50mm 6H Metric DIN/DIn Coolant HSSE TiCN

Part Number: EMUC0539401.0133 ISO: C0539401.0133

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1156355
Vendor: Sussex Tool and Supply
$961.09
EMUGE C0539401.0133 M33x3.50MM Cut Straight Flute Mod Bottom 2.0P-3.0P HSSE TiCN 6H Metric Steel Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Taping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating Gray Iron, Ductile Iron
Coating TICN
Overall Length 11.4173 290.00MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.9840 24.99MM
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 3.50MM
Thread Type METRIC
Flute Direction STRAIGHT
Thread Size M33
Thread Limit 6H
Tap Style Cut Straight Flute
Tap Type Mod Bottom
Dimension Standard DIN/DIN
Tap Drill Range 1.1559 29.36MM - 1.1917 30.27MM
Tap Square 0.7870
Tap Chamfer 2.0P-3.0P
