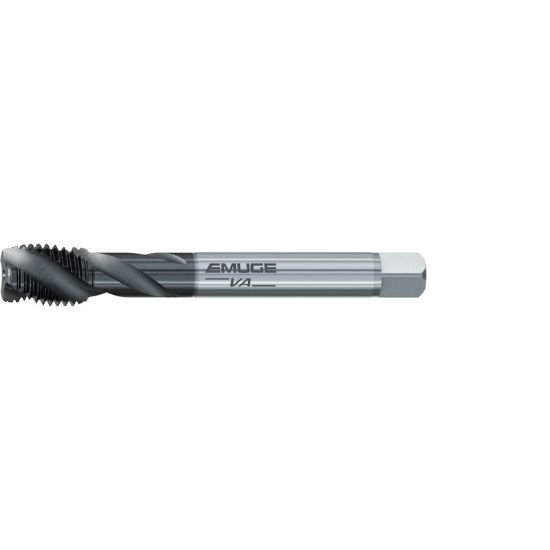

Picture of Emuge C050C300.0315 Tap M13-1.00mm Mod Bottom Metric DIN/DIn 2.0P-3.0P HSS HSSE GLT-1

Emuge C050C300.0315 Tap M13-1.00mm Mod Bottom Metric DIN/DIn 2.0P-3.0P HSS HSSE GLT-1

Part Number: EMUC050C300.0315 ISO: C050C300.0315
Looking for alternatives…
Find a drill for this tap M13 × 1.00MM
% of thread 75%
Target drill —
Drill products available across the % thread range 0 drills
50% 90%
Closest drill
—
View this drill →
Heads up: the drill list shows every drill within ±5% thread of your selection (so diameters vary across that band). Pick a drill closer to the target for higher % thread, or a larger one for easier tapping at lower %.

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1159805
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

EMUGE C050C300.0315 M13x1.00MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE GLT-1 6H Metric GLT-1 - Hard surface coating with anti-friction layer In a PVD process (500 °C) a coating thickness of 2-4 μm can be realized.
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type METRIC
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Tap Chamfer 2.0P-3.0P
Dimensions & Sizing
Overall Length 3.3750 85.73MM
Thread Pitch 1.00MM
Thread Size M13
Tap Drill Range 0.4709 11.96MM - 0.4811 12.22MM
Performance & Capacity
Cut Rating Stainless Steel, <42HRC Steel
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit 6H
Materials & Finish
Cutting Edge Mat HSSE
Coating GLT-1
Standards & Identification
Dimension Standard DIN/DIN
