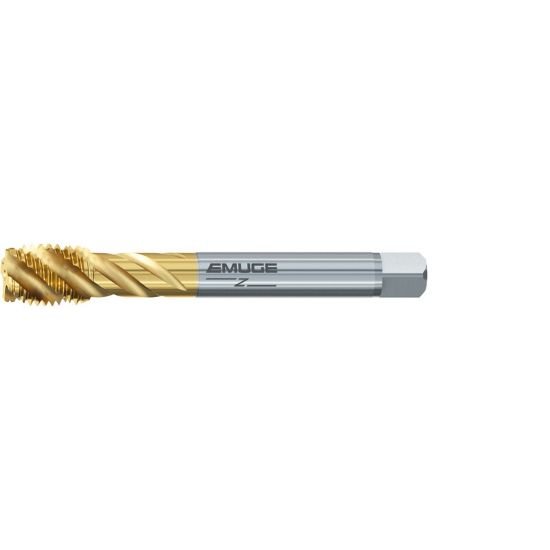

Picture of Emuge C0503700.0145 Tap Mod Bottom M45-4.50mm 6H Metric DIN/DIn HSSE TiN

Emuge C0503700.0145 Tap Mod Bottom M45-4.50mm 6H Metric DIN/DIn HSSE TiN

Part Number: EMUC0503700.0145

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1156564
Vendor: Sussex Tool and Supply
$1,815.05
High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.
Products specifications
Attribute name Attribute value
Tap Drill Range 1.5874 40.32MM - 1.6335 41.49MM
Dimension Standard DIN/DIN
Shank Or Pilot Diameter 1.4170 35.99MM
Thread Limit 6H
Cutter Type Taping
Tap Square 1.1410
Length Type STANDARD
Performance Rating High Performance
Tap Style Cut Spiral Flute
Overall Length 8.6614 220.00MM
Machine Side (Toolpost) TAP1.141x1.417
Cutting Edge Definition since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, V, the X component is present in excess of 7%, W or Mo, along with more than 0.60% carbon., and Co. These steels are mainly used for cutting tools
Type of Tool Tap
Machine Side (Toolpost) Connection Type Tap Collet
Shipping State MASSACHUSETTS
Family Group Enorm Z Taps
Cutting Edge Material HSSE
Tool Material Steel
Coating TIN
Coolant Thru Non Coolant
Tap Type Mod Bottom
Flute Direction Right
Thread Type Metric
Made In USA No
Thread Size M45
Thread Pitch 4.50MM
Tap Chamfer 2.0P-3.0P
