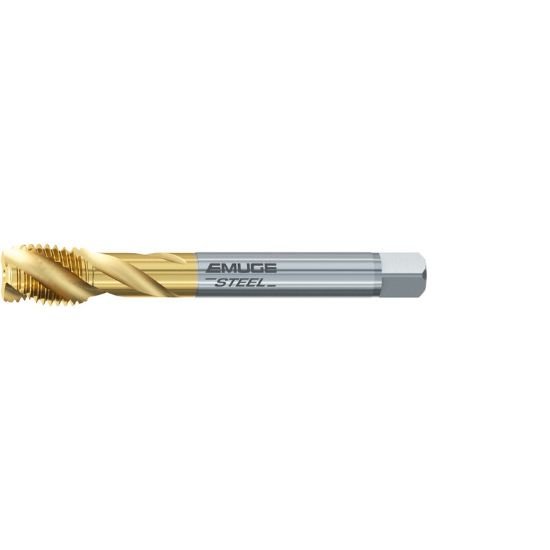

Picture of Emuge C0501400.0438 Tap M22-1.50mm Mod Bottom Metric DIN/DIn 2.0P-3.0P HSS HSSE TiN

Emuge C0501400.0438 Tap M22-1.50mm Mod Bottom Metric DIN/DIn 2.0P-3.0P HSS HSSE TiN

Part Number: EMUC0501400.0438

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1158889
Vendor: Sussex Tool and Supply
$262.48
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Cutter Type Taping
Made In USA No
Cutting Edge Definition High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.
Cutting Edge Material HSSE
Tool Material Steel
Machine Side (Toolpost) TAP0.571x0.709
Machine Side (Toolpost) Connection Type Tap Collet
Overall Length 5.5118 140.00MM
Shank Or Pilot Diameter 0.7080 17.98MM
Family Group Steel Taps
Coolant Thru Non Coolant
Coating TiN
Type of Tool Tap
Length Type Standard
Performance Rating High Performance
Thread Pitch 1.50MM
Thread Type Metric
Thread Size M22
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Thread Limit 6H
Dimension Standard DIN/DIN
Tap Drill Range 0.8087 20.54MM - 0.8201 20.83MM
Tap Square 0.5230
Tap Chamfer 2.0P-3.0P
