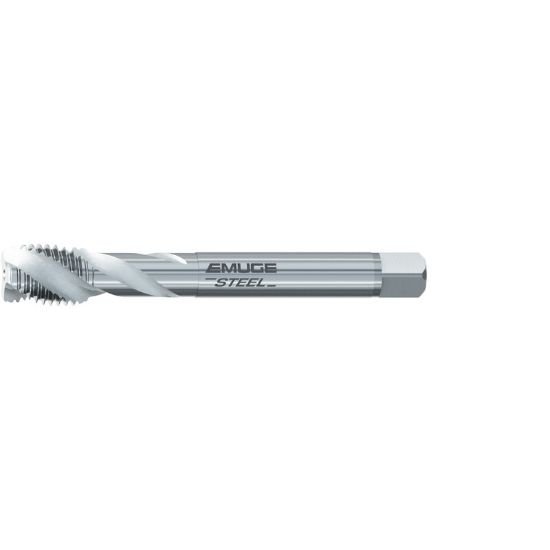

Picture of Emuge C0501020.0112 Tap Mod Bottom M12-1.75mm 6G Metric DIN/DIn HSSE

Emuge C0501020.0112 Tap Mod Bottom M12-1.75mm 6G Metric DIN/DIn HSSE

Part Number: EMUC0501020.0112

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1158934
Vendor: Sussex Tool and Supply
$0.00
High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.
Products specifications
Attribute name Attribute value
Tap Drill Range 0.4008 10.18MM - 0.4189 10.64MM
Dimension Standard DIN/DIN
Shank Or Pilot Diameter 0.3540 8.99MM
Thread Limit 6G
Cutter Type Taping
Tap Square 0.2750
Length Type STANDARD
Performance Rating High Performance
Tap Style Cut Spiral Flute
Overall Length 4.3307 110.00MM
Machine Side (Toolpost) TAP0.276x0.354
Cutting Edge Definition since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, V, the X component is present in excess of 7%, W or Mo, along with more than 0.60% carbon., and Co. These steels are mainly used for cutting tools
Type of Tool Tap
Machine Side (Toolpost) Connection Type Tap Collet
Shipping State MASSACHUSETTS
Family Group Steel Taps
Cutting Edge Material HSSE
Tool Material Steel
Coolant Thru Non Coolant
Tap Type Mod Bottom
Flute Direction Right
Thread Type Metric
Made In USA No
Thread Size M12
Thread Pitch 1.75MM
Tap Chamfer 2.0P-3.0P
