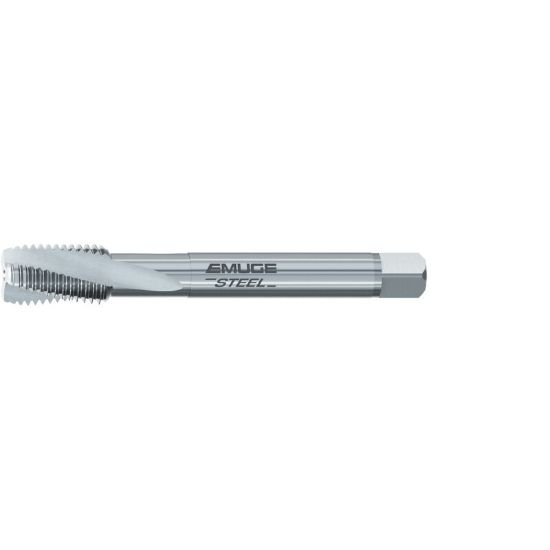

Picture of Emuge C0461000.5070 Tap 1-20.00TPI Bottoming NF/UNF/UNEF DIN/DIn 1.5P-2.0P Carbide HSSE

Emuge C0461000.5070 Tap 1-20.00TPI Bottoming NF/UNF/UNEF DIN/DIn 1.5P-2.0P Carbide HSSE

Part Number: EMUC0461000.5070 ISO: C0461000.5070

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1158335
Vendor: Sussex Tool and Supply
$357.77
EMUGE C0461000.5070 1"x20.00TPI Cut Spiral Flute Bottoming 1.5P-2.0P HSSE Uncoated 6H NF/UNF/UNEF Steel
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Taping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating Stainless Steel, <40HRC Steel
Overall Length 5.5118 140.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.7080 17.98MM
Flutes/Inserts 4
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 20.00TPI
Thread Type NF/UNF/UNEF
Flute Direction RIGHT
Thread Size 1"
Thread Limit 6H
Tap Style Cut Spiral Flute
Tap Type Bottoming
Dimension Standard DIN/DIN
Tap Drill Range 0.9457 24.02MM - 0.9606 24.40MM
Tap Square 0.5700
Tap Chamfer 1.5P-2.0P
Multi Spindle Yes
