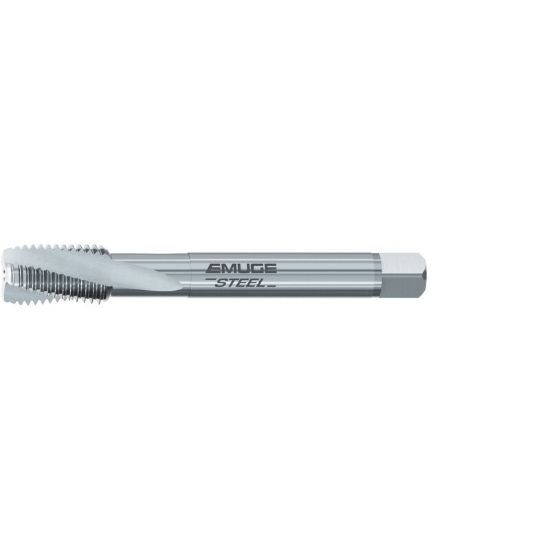

Picture of Emuge C0461000.5066 Tap 3/4-20.00TPI Bottoming NF/UNF/UNEF DIN/DIn 1.5P-2.0P Carbide HSSE

Emuge C0461000.5066 Tap 3/4-20.00TPI Bottoming NF/UNF/UNEF DIN/DIn 1.5P-2.0P Carbide HSSE

Part Number: EMUC0461000.5066 ISO: C0461000.5066

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1158333
Vendor: Sussex Tool and Supply
$239.79
EMUGE C0461000.5066 3/4"x20.00TPI Cut Spiral Flute Bottoming 1.5P-2.0P HSSE Uncoated 6H NF/UNF/UNEF Steel
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Taping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating Stainless Steel, <40HRC Steel
Overall Length 4.3307 110.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.5510 14.00MM
Flutes/Inserts 4
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 20.00TPI
Thread Type NF/UNF/UNEF
Flute Direction RIGHT
Thread Size 3/4"
Thread Limit 6H
Tap Style Cut Spiral Flute
Tap Type Bottoming
Dimension Standard DIN/DIN
Tap Drill Range 0.6957 17.67MM - 0.7106 18.05MM
Tap Square 0.4330
Tap Chamfer 1.5P-2.0P
Multi Spindle Yes
