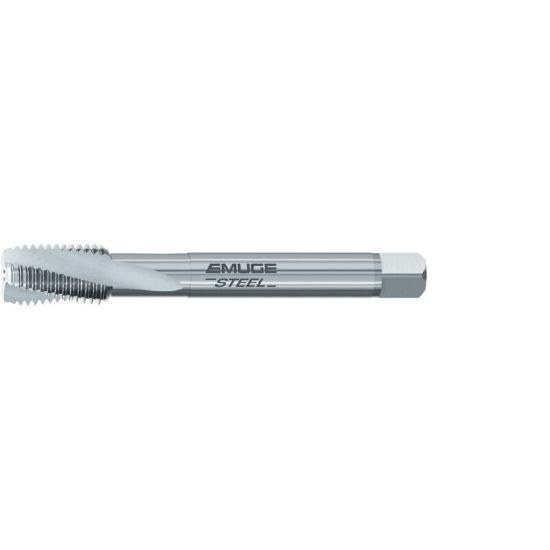

Picture of Emuge C0461000.4039 Tap 5/8-14.00TPI Pipe BSP DIN/DIn 1.5P-2.0P Carbide HSSE

Emuge C0461000.4039 Tap 5/8-14.00TPI Pipe BSP DIN/DIn 1.5P-2.0P Carbide HSSE

Part Number: EMUC0461000.4039 ISO: C0461000.4039
Looking for alternatives…
Find a drill for this tap 5/8" × 14.00TPI
% of thread 75%
Target drill —
Drill products available across the % thread range 0 drills
50% 90%
Closest drill
—
View this drill →
Heads up: the drill list shows every drill within ±5% thread of your selection (so diameters vary across that band). Pick a drill closer to the target for higher % thread, or a larger one for easier tapping at lower %.

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1157900
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

EMUGE C0461000.4039 5/8"x14.00TPI Pipe Spiral Flute Pipe 1.5P-2.0P HSSE Uncoated PIPE BSP Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type BSP
Tap Style Pipe Spiral Flute
Tap Type Pipe
Tap Chamfer 1.5P-2.0P
Dimensions & Sizing
Overall Length 4.9213 125.00MM
Shank/Pilot Dia 0.7600 19.30MM
Thread Pitch 14.00TPI
Thread Size 5/8"
Tap Drill Range 0.8268 21.00MM
Tap Square 0.5700
Performance & Capacity
Cut Rating Stainless Steel, <40HRC Steel
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit PIPE
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE
Standards & Identification
Dimension Standard DIN/DIN
