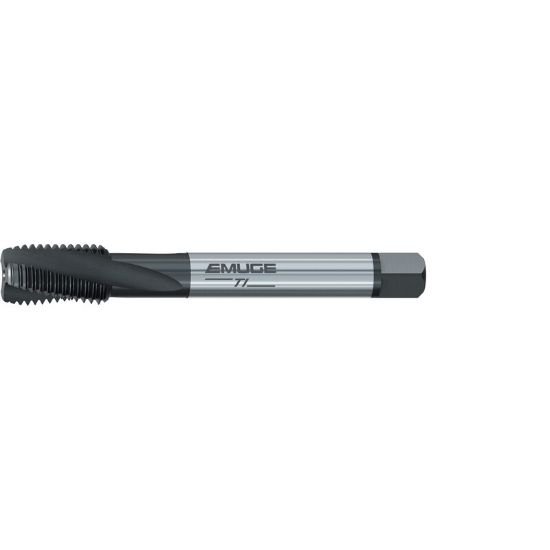

Emuge C0456001.0145 Tap M45-4.50mm Mod Bottom Metric DIN/DIn 2.0P-3.0P Cobalt HSSE Nitride + Steam Oxide

Part Number: EMUC0456001.0145 ISO: C0456001.0145

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1159595
$1,610.43
EMUGE C0456001.0145 M45x4.50MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE Nitride + Steam Oxide 6H Metric Steel Liquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Taping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating High Temp, Inconel, Titanium
Coating Nitride + Steam Oxide
Overall Length 8.6614 220.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 1.4170 35.99MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 4.50MM
Thread Type METRIC
Flute Direction RIGHT
Thread Size M45
Thread Limit 6H
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Dimension Standard DIN/DIN
Tap Drill Range 1.5874 40.32MM - 1.6335 41.49MM
Tap Square 1.1410
Tap Chamfer 2.0P-3.0P
