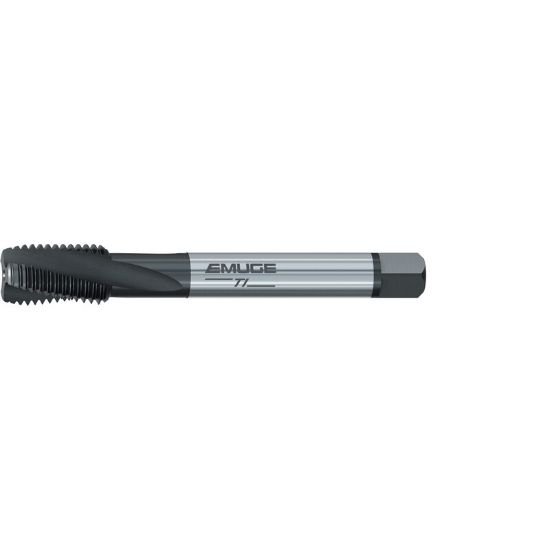

Picture of Emuge C0456001.0136 Tap M36-4.00mm Mod Bottom Metric DIN/DIn 2.0P-3.0P Cobalt HSSE Nitride + Steam Oxide

Emuge C0456001.0136 Tap M36-4.00mm Mod Bottom Metric DIN/DIn 2.0P-3.0P Cobalt HSSE Nitride + Steam Oxide

Part Number: EMUC0456001.0136 ISO: C0456001.0136
Looking for alternatives…
Find a drill for this tap M36 × 4.00MM
% of thread 75%
Target drill —
Drill products available across the % thread range 0 drills
50% 90%
Closest drill
—
View this drill →
Heads up: the drill list shows every drill within ±5% thread of your selection (so diameters vary across that band). Pick a drill closer to the target for higher % thread, or a larger one for easier tapping at lower %.

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1159593
Vendor: Sussex Tool and Supply
$891.65

Description

EMUGE C0456001.0136 M36x4.00MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE Nitride + Steam Oxide 6H Metric Steel Liquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type METRIC
Flute Direction RIGHT
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Tap Chamfer 2.0P-3.0P
Dimensions & Sizing
Overall Length 7.8740 200.00MM
Shank/Pilot Dia 1.1024 28.00MM
Thread Pitch 4.00MM
Thread Size M36
Tap Drill Range 1.2535 31.84MM - 1.2945 32.88MM
Tap Square 0.9250
Performance & Capacity
Cut Rating High Temp, Inconel, Titanium
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit 6H
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE
Coating Nitride + Steam Oxide
Standards & Identification
Dimension Standard DIN/DIN
