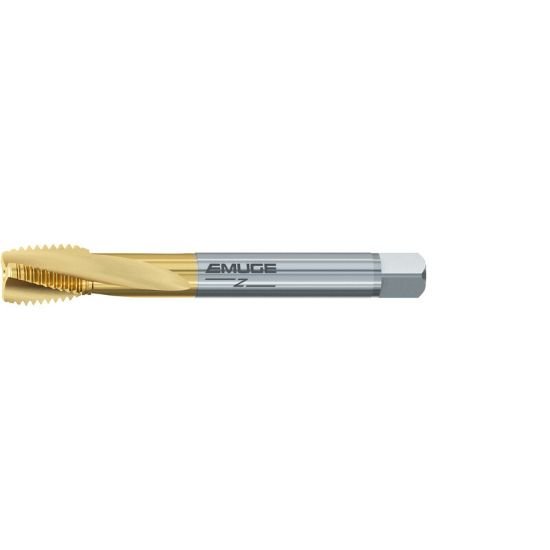

Picture of Emuge C0453701.0145 Tap Mod Bottom M45-4.50mm 6H Metric DIN/DIn HSSE TiN

Emuge C0453701.0145 Tap Mod Bottom M45-4.50mm 6H Metric DIN/DIn HSSE TiN

Part Number: EMUC0453701.0145 ISO: C0453701.0145

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1158420
Vendor: Sussex Tool and Supply
$1,856.80
EMUGE C0453701.0145 M45x4.50MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE TiN 6H Metric Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Taping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating Stainless Steel, <40HRC Steel
Coating TIN
Overall Length 8.6614 220.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 1.4170 35.99MM
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 4.50MM
Thread Type METRIC
Flute Direction RIGHT
Thread Size M45
Thread Limit 6H
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Dimension Standard DIN/DIN
Tap Drill Range 1.5874 40.32MM - 1.6335 41.49MM
Tap Square 1.1410
Tap Chamfer 2.0P-3.0P
Multi Spindle Yes
