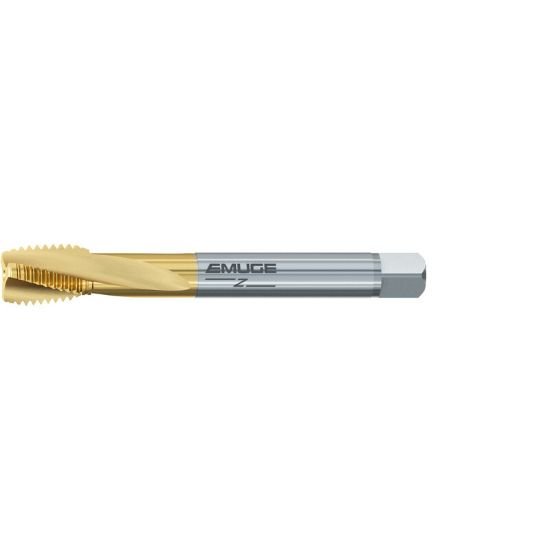

Picture of Emuge C0453701.0142 Tap Mod Bottom M42-4.50mm 6H Metric DIN/DIn HSSE TiN

Emuge C0453701.0142 Tap Mod Bottom M42-4.50mm 6H Metric DIN/DIn HSSE TiN

Part Number: EMUC0453701.0142

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1158419
Vendor: Sussex Tool and Supply
$1,595.42
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Cutter Type Taping
Made In USA No
Cutting Edge Definition High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.
Cutting Edge Material HSSE
Tool Material Steel
Machine Side (Toolpost) TAP0.944x1.259
Machine Side (Toolpost) Connection Type Tap Collet
Overall Length 7.8740 200.00MM
Shank Or Pilot Diameter 1.2590 31.98MM
Family Group Rekord D Taps
Coolant Thru Non Coolant
Coating TiN
Type of Tool Tap
Length Type Standard
Performance Rating High Performance
Thread Pitch 4.50MM
Thread Type Metric
Flute Direction Right
Thread Size M42
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Thread Limit 6H
Dimension Standard DIN/DIN
Tap Drill Range 1.4693 37.32MM - 1.5154 38.49MM
Tap Square 0.9440
Tap Chamfer 2.0P-3.0P
Multi Spindle Yes
