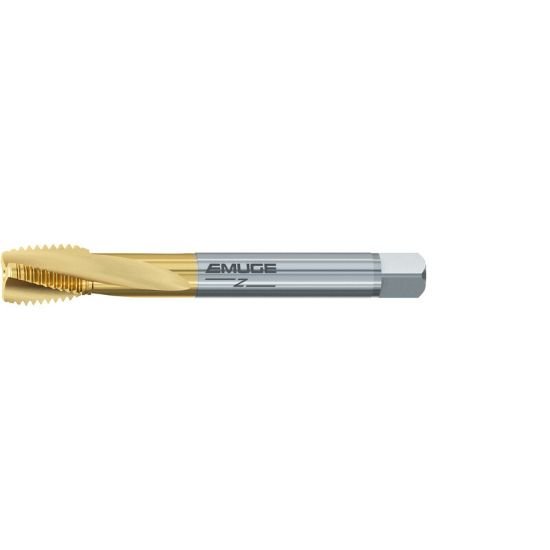

Picture of Emuge C0453701.0122 Tap Mod Bottom M22-2.50mm 6H Metric DIN/DIn HSSE TiN

Emuge C0453701.0122 Tap Mod Bottom M22-2.50mm 6H Metric DIN/DIn HSSE TiN

Part Number: EMUC0453701.0122 ISO: C0453701.0122

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1158413
Vendor: Sussex Tool and Supply
$408.43
EMUGE C0453701.0122 M22x2.50MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE TiN 6H Metric Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Taping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating Stainless Steel, <40HRC Steel
Coating TIN
Overall Length 5.5118 140.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.7080 17.98MM
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 2.50MM
Thread Type METRIC
Flute Direction RIGHT
Thread Size M22
Thread Limit 6H
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Dimension Standard DIN/DIN
Tap Drill Range 0.7638 19.40MM - 0.7894 20.05MM
Tap Square 0.5230
Tap Chamfer 2.0P-3.0P
Multi Spindle Yes
