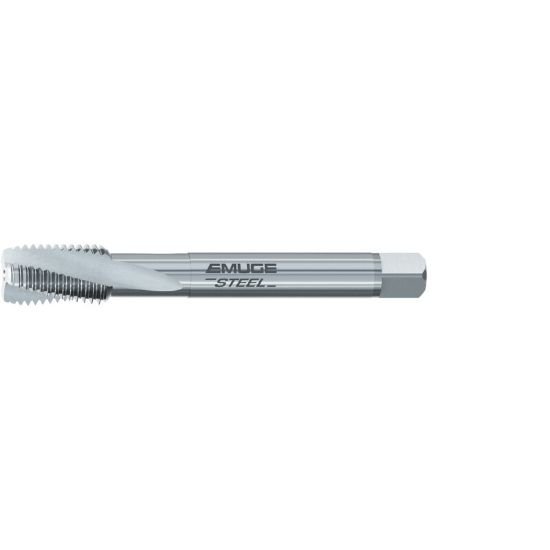

Picture of Emuge C0451000.4043 Tap 1-1/8-11.00TPI Pipe BSP DIN/DIn 2.0P-3.0P HSSE

Emuge C0451000.4043 Tap 1-1/8-11.00TPI Pipe BSP DIN/DIn 2.0P-3.0P HSSE

Part Number: EMUC0451000.4043 ISO: C0451000.4043
Looking for alternatives…
Find a drill for this tap 1-1/8" × 11.00TPI
% of thread 75%
Target drill —
Drill products available across the % thread range 0 drills
50% 90%
Closest drill
—
View this drill →
Heads up: the drill list shows every drill within ±5% thread of your selection (so diameters vary across that band). Pick a drill closer to the target for higher % thread, or a larger one for easier tapping at lower %.

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1157923
Vendor: Sussex Tool and Supply
$669.56

Description

EMUGE C0451000.4043 1-1/8"x11.00TPI Pipe Spiral Flute Pipe 2.0P-3.0P HSSE Uncoated PIPE BSP Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type BSP
Flute Direction RIGHT
Tap Style Pipe Spiral Flute
Tap Type Pipe
Tap Chamfer 2.0P-3.0P
Dimensions & Sizing
Overall Length 6.6929 170.00MM
Shank/Pilot Dia 1.1020 27.99MM
Thread Pitch 11.00TPI
Thread Size 1-1/8"
Tap Drill Range 1.3976 35.50MM
Tap Square 0.8660
Performance & Capacity
Cut Rating Stainless Steel, <40HRC Steel
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit PIPE
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE
Standards & Identification
Dimension Standard DIN/DIN
