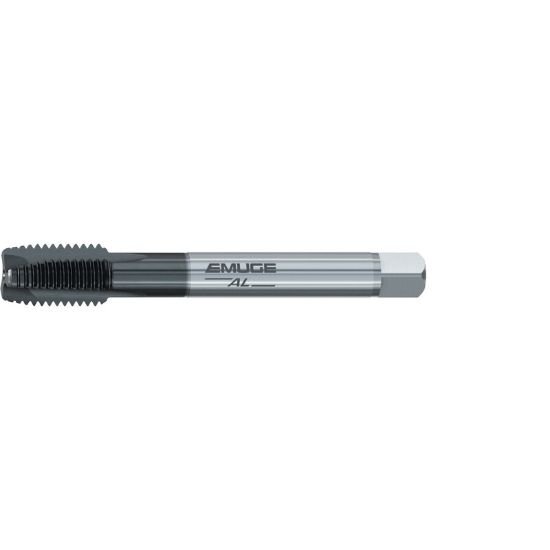

Picture of Emuge C020S800.0977 Tap M12-1.75mm Plug STI-M DIN/DIn 4P-5P Carbide HSSE DLC

Emuge C020S800.0977 Tap M12-1.75mm Plug STI-M DIN/DIn 4P-5P Carbide HSSE DLC

Part Number: EMUC020S800.0977

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1159162
Vendor: Sussex Tool and Supply
$0.00
High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.
Products specifications
Attribute name Attribute value
Tap Drill Range 0.4921 12.50MM
Dimension Standard DIN/DIN
Shank Or Pilot Diameter 0.4330 11.00MM
Thread Limit 6H
Cutter Type Taping
Tap Square 0.3220
Length Type STANDARD
Performance Rating High Performance
Tap Style STI
Overall Length 4.3307 110.00MM
Machine Side (Toolpost) TAP0.354x0.433
Cutting Edge Definition since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, V, the X component is present in excess of 7%, W or Mo, along with more than 0.60% carbon., and Co. These steels are mainly used for cutting tools
Type of Tool Tap
Machine Side (Toolpost) Connection Type Tap Collet
Flutes Or Inserts 2
Shipping State MASSACHUSETTS
Family Group STI Thread Taps
Cutting Edge Material HSSE
Tool Material Steel
Coating DLC
Coolant Thru Non Coolant
Tap Type Plug
Flute Direction Straight
Thread Type STI-M
Made In USA No
Thread Size M12
Thread Pitch 1.75MM
Tap Chamfer 4P-5P
