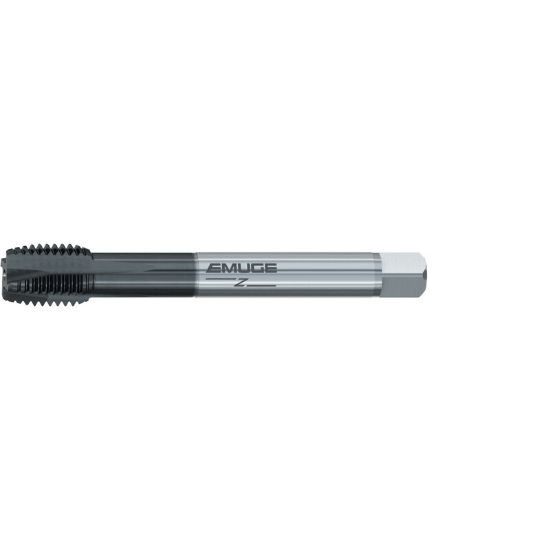

Picture of Emuge C020A601.0422 Tap M20-1.50mm Plug Metric DIN/DIn 4P-5P Carbide HSSE-Powder Metal GLT-1

Emuge C020A601.0422 Tap M20-1.50mm Plug Metric DIN/DIn 4P-5P Carbide HSSE-Powder Metal GLT-1

Part Number: EMUC020A601.0422

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1158230
Vendor: Sussex Tool and Supply
$236.61
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Cutter Type Taping
Made In USA No
Cutting Edge Definition Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages
Cutting Edge Material HSSE-PM
Tool Material Steel
Machine Side (Toolpost) TAP0.472x0.630
Machine Side (Toolpost) Connection Type Tap Collet
Overall Length 4.9213 125.00MM
Shank Or Pilot Diameter 0.6290 15.98MM
Family Group Rekord B-Z Taps
Coolant Thru Non Coolant
Coating GLT-1
Flutes Or Inserts 4
Type of Tool Tap
Length Type Standard
Performance Rating High Performance
Thread Pitch 1.50MM
Thread Type Metric
Flute Direction Straight
Thread Size M20
Tap Style Cut Spiral Point
Tap Type Plug
Thread Limit 6H
Dimension Standard DIN/DIN
Tap Drill Range 0.7299 18.54MM - 0.7413 18.83MM
Tap Square 0.4890
Tap Chamfer 4P-5P
