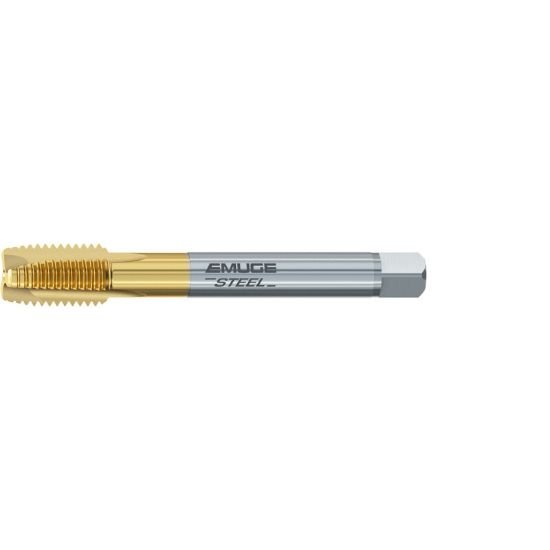

Picture of Emuge C0208400.4038 Tap 1/2-14.00TPI Pipe BSP DIN/DIn 4P-5P Carbide HSSE TiN

Emuge C0208400.4038 Tap 1/2-14.00TPI Pipe BSP DIN/DIn 4P-5P Carbide HSSE TiN

Part Number: EMUC0208400.4038

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1157930
Vendor: Sussex Tool and Supply
$0.00
High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.
Products specifications
Attribute name Attribute value
Tap Drill Range 0.7480 19.00MM
Dimension Standard DIN/DIN
Shank Or Pilot Diameter 0.6290 15.98MM
Thread Limit PIPE
Cutter Type Taping
Tap Square 0.4720
Length Type STANDARD
Performance Rating High Performance
Tap Style Pipe Straight Flute
Overall Length 4.9213 125.00MM
Machine Side (Toolpost) TAP0.472x0.630
Cutting Edge Definition since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, V, the X component is present in excess of 7%, W or Mo, along with more than 0.60% carbon., and Co. These steels are mainly used for cutting tools
Type of Tool Tap
Machine Side (Toolpost) Connection Type Tap Collet
Flutes Or Inserts 4
Shipping State MASSACHUSETTS
Family Group Pipe Taps
Cutting Edge Material HSSE
Tool Material Steel
Coating TIN
Coolant Thru Non Coolant
Tap Type Pipe
Flute Direction Straight
Thread Type BSP
Made In USA No
Thread Size 1/2"
Thread Pitch 14.00TPI
Tap Chamfer 4P-5P
