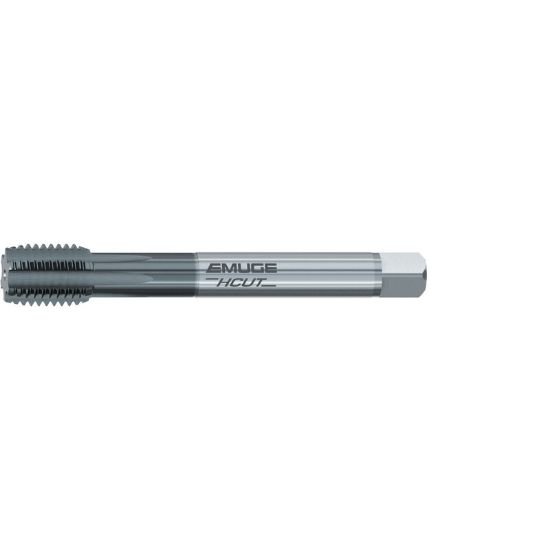

Picture of Emuge C010J901.4037 Tap 3/8-19 TPI Pipe BSP DIN/DIn 2.0P-3.0P Cobalt HSSE-Powder Metal TiCN

Emuge C010J901.4037 Tap 3/8-19 TPI Pipe BSP DIN/DIn 2.0P-3.0P Cobalt HSSE-Powder Metal TiCN

Part Number: EMUC010J901.4037 ISO: C010J901.4037
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$499.93
SKU: 1157872

Description

EMUGE C010J901.4037 3/8"x19 TPI Pipe Straight Flute Pipe 2.0P-3.0P HSSE-PM TiCN PIPE BSP
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type BSP
Flute Direction STRAIGHT
Tap Style Pipe Straight Flute
Tap Type Pipe
Tap Chamfer 2.0P-3.0P
Dimensions & Sizing
Overall Length 3.9370 100.00MM
Shank/Pilot Dia 0.4720 11.99MM
Thread Pitch 19.00TPI
Thread Size 3/8"
Tap Drill Range 0.6004 15.25MM
Tap Square 0.3540
Performance & Capacity
Cut Rating <48HRC Steel, Aluminum, Gray Iron, Ductile Iron
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit PIPE
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE-PM
Coating TICN
Standards & Identification
Dimension Standard DIN/DIN
Only registered users can write reviews
