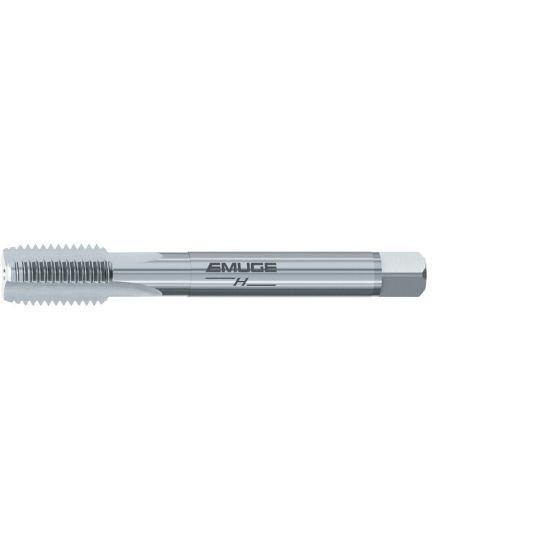

Emuge C0100501.4048 Tap 1-3/4-11.00TPI Pipe BSP DIN/DIn 2.0P-3.0P HSS HSSE Nitride

Part Number: EMUC0100501.4048 ISO: C0100501.4048

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1157883
$1,174.57
EMUGE C0100501.4048 1-3/4"x11.00TPI Pipe Spiral Flute Pipe 2.0P-3.0P HSSE Nitride PIPE BSP Steel Liquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Taping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating Stainless Steel, <40HRC Steel
Coating Nitride
Overall Length 7.4803 190.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 1.5740 39.98MM
Flutes/Inserts 6
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 11.00TPI
Thread Type BSP
Flute Direction RIGHT
Thread Size 1-3/4"
Thread Limit PIPE
Tap Style Pipe Spiral Flute
Tap Type Pipe
Dimension Standard DIN/DIN
Tap Drill Range 2.0079 51.00MM
Tap Square 1.2590
Tap Chamfer 2.0P-3.0P
