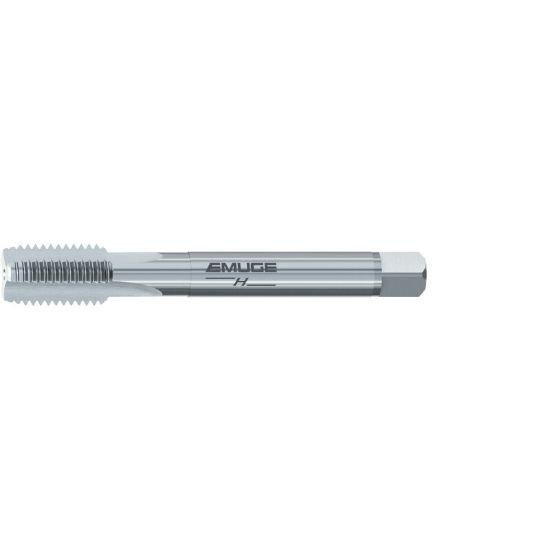

Emuge C0100501.4046 Tap 1-1/2-11.00TPI Pipe BSP DIN/DIn 2.0P-3.0P HSS HSSE Nitride

Part Number: EMUC0100501.4046 ISO: C0100501.4046

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1157882
$896.68
EMUGE C0100501.4046 1-1/2"x11.00TPI Pipe Straight Flute Pipe 2.0P-3.0P HSSE Nitride PIPE BSP Steel Liquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Taping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating Stainless Steel, <40HRC Steel
Coating Nitride
Overall Length 7.4803 190.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 1.4170 35.99MM
Flutes/Inserts 6
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 11.00TPI
Thread Type BSP
Flute Direction STRAIGHT
Thread Size 1-1/2"
Thread Limit PIPE
Tap Style Pipe Straight Flute
Tap Type Pipe
Dimension Standard DIN/DIN
Tap Drill Range 1.7815 45.25MM
Tap Square 1.1410
Tap Chamfer 2.0P-3.0P
