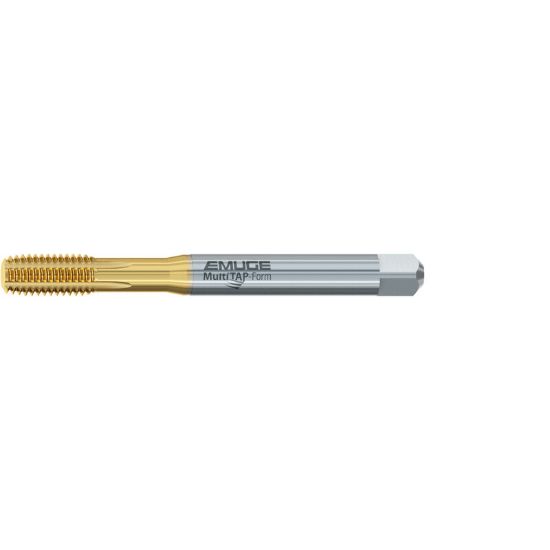

EMUGE BU591410.5043 Tap 1/4-28.00TPI Bottoming NF/UNF/UNEF DINSI 1.5P-2.0P No Coolant HSSE TiN

ISO: BU591410.5043

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUBU591410.5043
Delivery date: 3-5 days
$30.29
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Massachusetts
Package Size 1
Sold by Pieces 1
Application Blind Hole Tapping, Roll Form Tapping, Bottom Tapping, Tapping
Material # Material#3
Additional Key Information 1 Tapping
Performance Rating High Performance
Coating TiN
Uncategorized
Made In USA No
Dimensional Specifications
Thread Limit 2B/3B
Dimension Standard DINSI
Overall Len 3.1490 79.98MM
Tap Style Roll Form
Thread Size 1/4"
Flute Direction STRAIGHT
Shank/Pilot Dia 0.2550 6.48MM
Tool Material Steel
Length Type Standard
Tap Type Bottoming
Thread Pitch 28.00TPI
Machine Side TAP0.191x0.255
Thread Type NF/UNF/UNEF
Cut Rating <40HRC Steel
Machine Side Connection Type Tap Collet
Drill Range 0.2315 5.88MM - 0.2362 6.00MM
Tap Square 0.1910
Tap Chamfer 1.5P-2.0P
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
