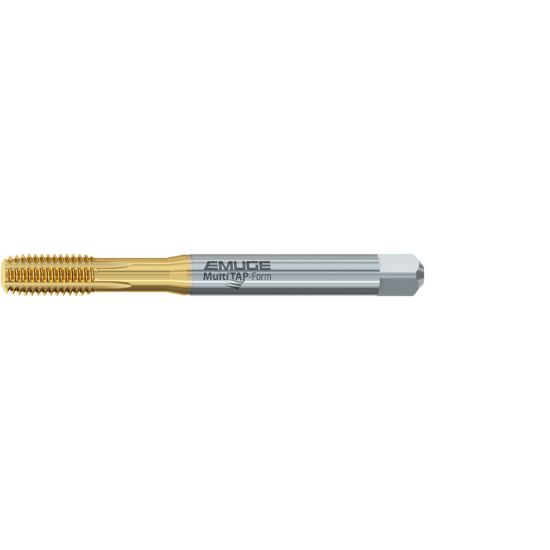

EMUGE BU591410.5040 Tap No.8-36.00TPI Bottoming NF/UNF/UNEF DINSI 1.5P-2.0P No Coolant HSSE TiN

ISO: BU591410.5040

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUBU591410.5040
Delivery date: 3-5 days
$27.56
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Coating TiN
Sold by Pieces 1
Application Blind Hole Tapping, Bottom Tapping, Roll Form Tapping, Tapping
Material # Material#3
Additional Key Information 1 Tapping
Performance Rating High Performance
Shipping State Massachusetts
Package Size 1
Uncategorized
Made In USA No
Dimensional Specifications
Cut Rating <40HRC Steel
Machine Side Connection Type Tap Collet
Tool Material Steel
Tap Type Bottoming
Thread Limit 2B/3B
Dimension Standard DINSI
Shank/Pilot Dia 0.1680 4.27MM
Tap Square 0.1310
Length Type Standard
Tap Style Roll Form
Thread Size No.8
Thread Pitch 36.00TPI
Flute Direction STRAIGHT
Thread Type NF/UNF/UNEF
Machine Side TAP0.131x0.168
Overall Len 2.4850 63.12MM
Drill Range 0.1496 3.80MM - 0.1535 3.90MM
Tap Chamfer 1.5P-2.0P
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
