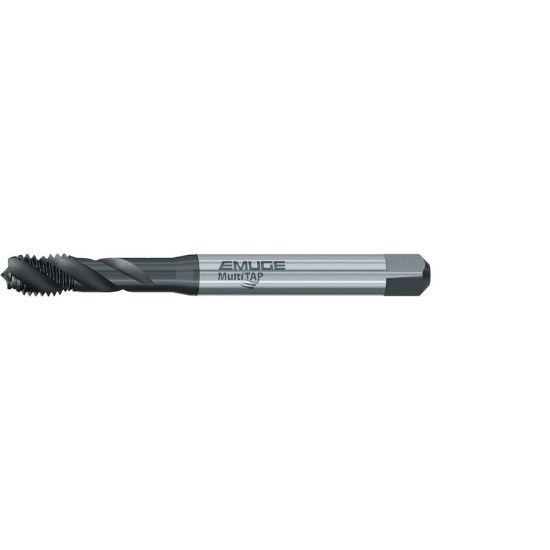

EMUGE BU533200.5042 Tap Mod Bottom No.12-28.00TPI 2B/3B NF/UNF/UNEF DINSI No Coolant HSSE Oxide + TiN

ISO: BU533200.5042

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUBU533200.5042
Delivery date: 3-5 days
$26.07
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

TiN is a clear step up from even high quality oxide coating. Its around 20% harder, and is significantly smoother and resistant to BUE

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Massachusetts
Package Size 1
Material # Material#21, Material#23, Material#20, Material#10, Material#8
Coating Oxide + TiN
Sold by Pieces 1
Application Mod Bottom Tapping, Cut Tapping, Tapping
Additional Key Information 1 Tapping
Performance Rating High Performance
Uncategorized
Made In USA No
Dimensional Specifications
Thread Limit 2B/3B
Shank/Pilot Dia 0.2200 5.59MM
Overall Len 3.1490 79.98MM
Tap Chamfer 2.0P-3.0P
Thread Size No.12
Flute Direction R - Right
Dimension Standard DINSI
Length Type Standard
Tool Material Steel
Tap Square 0.1650
Drill Range 0.1787 4.54MM - 0.1882 4.78MM
Thread Pitch 28.00TPI
Flutes/Inserts 3
Thread Type NF/UNF/UNEF
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Stainless Steel
Machine Side TAP0.165x0.220
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
