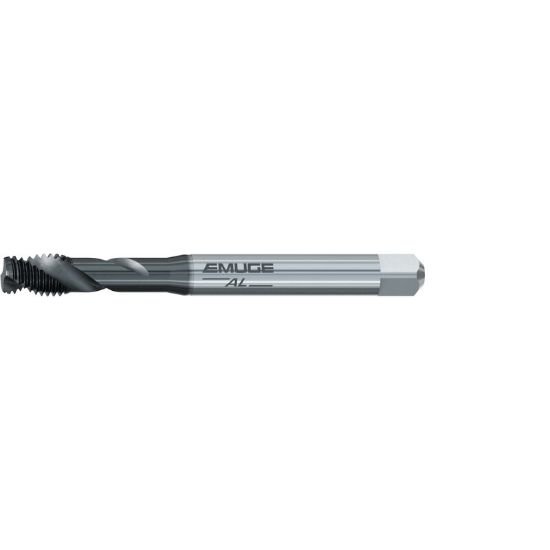

Picture of Emuge BU51S810.5637 Tap No.10-32.00TPI Bottoming STI-I DINSI 1.5P-2.0P HSS HSSE DLC

Emuge BU51S810.5637 Tap No.10-32.00TPI Bottoming STI-I DINSI 1.5P-2.0P HSS HSSE DLC

Part Number: EMUBU51S810.5637

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1159173
Vendor: Sussex Tool and Supply
$0.00
High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.
Products specifications
Attribute name Attribute value
Tap Drill Range 0.2008 5.10MM
Dimension Standard DINSI
Shank Or Pilot Diameter 0.2550 6.48MM
Thread Limit 3B
Cutter Type Taping
Tap Square 0.1910
Length Type STANDARD
Performance Rating High Performance
Tap Style STI
Overall Length 3.1490 79.98MM
Machine Side (Toolpost) TAP0.191x0.255
Cutting Edge Definition since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, V, the X component is present in excess of 7%, W or Mo, along with more than 0.60% carbon., and Co. These steels are mainly used for cutting tools
Type of Tool Tap
Machine Side (Toolpost) Connection Type Tap Collet
Flutes Or Inserts 2
Shipping State MASSACHUSETTS
Family Group STI Thread Taps
Cutting Edge Material HSSE
Tool Material Steel
Coating DLC
Coolant Thru Non Coolant
Tap Type Bottoming
Flute Direction Right
Thread Type STI-I
Made In USA No
Thread Size No.10
Thread Pitch 32.00TPI
Tap Chamfer 1.5P-2.0P
