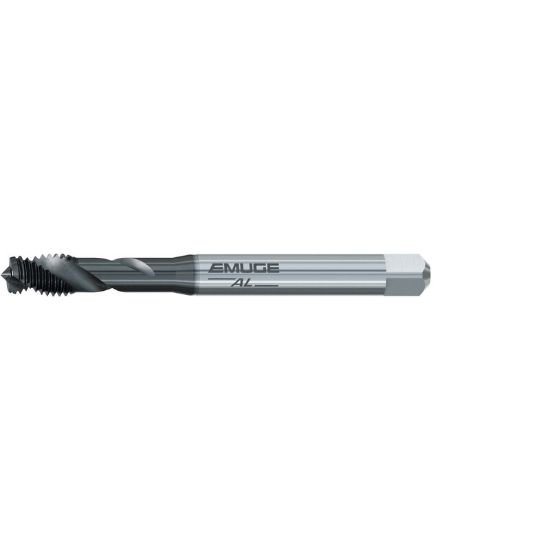

Picture of Emuge BU50S810.5001 Tap Mod Bottom No.2-56.00TPI 3B NC/UNC DINSI HSSE DLC

Emuge BU50S810.5001 Tap Mod Bottom No.2-56.00TPI 3B NC/UNC DINSI HSSE DLC

Part Number: EMUBU50S810.5001

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1155923
Vendor: Sussex Tool and Supply
$0.00
High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.
Products specifications
Attribute name Attribute value
Tap Drill Range 0.0673 1.71MM - 0.0720 1.83MM
Dimension Standard DINSI
Shank Or Pilot Diameter 0.1410 3.58MM
Thread Limit 3B
Cutter Type Taping
Tap Square 0.1100
Length Type STANDARD
Performance Rating High Performance
Tap Style Cut Spiral Flute
Overall Length 1.7720 45.01MM
Machine Side (Toolpost) TAP0.110x0.140
Cutting Edge Definition since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, V, the X component is present in excess of 7%, W or Mo, along with more than 0.60% carbon., and Co. These steels are mainly used for cutting tools
Type of Tool Tap
Machine Side (Toolpost) Connection Type Tap Collet
Flutes Or Inserts 2
Shipping State MASSACHUSETTS
Family Group Al Taps
Cutting Edge Material HSSE
Tool Material Steel
Coating DLC
Coolant Thru Non Coolant
Tap Type Mod Bottom
Flute Direction Right
Thread Type NC/UNC
Made In USA No
Thread Size No.2
Thread Pitch 56.00TPI
Tap Chamfer 2.0P-3.0P
