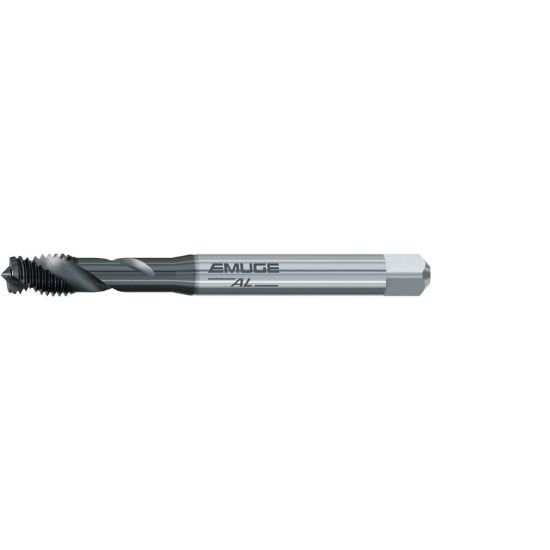

Picture of Emuge BU50S800.5045 Tap 3/8-24.00TPI Mod Bottom NF/UNF/UNEF DINSI 2.0P-3.0P HSSE DLC

Emuge BU50S800.5045 Tap 3/8-24.00TPI Mod Bottom NF/UNF/UNEF DINSI 2.0P-3.0P HSSE DLC

Part Number: EMUBU50S800.5045

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1155922
Vendor: Sussex Tool and Supply
$0.00
High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.
Products specifications
Attribute name Attribute value
Tap Drill Range 0.3315 8.42MM - 0.3421 8.69MM
Dimension Standard DINSI
Shank Or Pilot Diameter 0.3810 9.68MM
Thread Limit 2B
Cutter Type Taping
Tap Square 0.2860
Length Type STANDARD
Performance Rating High Performance
Tap Style Cut Spiral Flute
Overall Length 3.9370 100.00MM
Machine Side (Toolpost) TAP0.286x0.381
Cutting Edge Definition since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, V, the X component is present in excess of 7%, W or Mo, along with more than 0.60% carbon., and Co. These steels are mainly used for cutting tools
Type of Tool Tap
Machine Side (Toolpost) Connection Type Tap Collet
Flutes Or Inserts 2
Shipping State MASSACHUSETTS
Family Group Al Taps
Cutting Edge Material HSSE
Tool Material Steel
Coating DLC
Coolant Thru Non Coolant
Tap Type Mod Bottom
Flute Direction Right
Thread Type NF/UNF/UNEF
Made In USA No
Thread Size 3/8"
Thread Pitch 24.00TPI
Tap Chamfer 2.0P-3.0P
