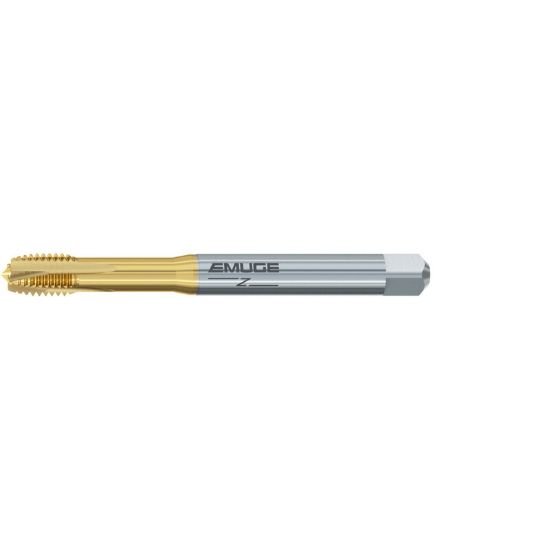

Picture of Emuge BU208F01.5004 Tap Plug No.5-40.00TPI 2B NC/UNC DINSI HSSE TiN

Emuge BU208F01.5004 Tap Plug No.5-40.00TPI 2B NC/UNC DINSI HSSE TiN

Part Number: EMUBU208F01.5004

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1158304
Vendor: Sussex Tool and Supply
$0.00
High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.
Products specifications
Attribute name Attribute value
Tap Drill Range 0.0988 2.51MM - 0.1047 2.66MM
Dimension Standard DINSI
Shank Or Pilot Diameter 0.1410 3.58MM
Thread Limit 2B
Cutter Type Taping
Tap Square 0.1100
Length Type STANDARD
Performance Rating High Performance
Tap Style Cut Spiral Point
Overall Length 2.2050 56.01MM
Machine Side (Toolpost) TAP0.110x0.141
Cutting Edge Definition since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, V, the X component is present in excess of 7%, W or Mo, along with more than 0.60% carbon., and Co. These steels are mainly used for cutting tools
Type of Tool Tap
Machine Side (Toolpost) Connection Type Tap Collet
Shipping State MASSACHUSETTS
Family Group Rekord B-Z Taps
Cutting Edge Material HSSE
Tool Material Steel
Coating TIN
Coolant Thru Non Coolant
Tap Type Plug
Thread Type NC/UNC
Made In USA No
Thread Size No.5
Thread Pitch 40.00TPI
Tap Chamfer 4P-5P
