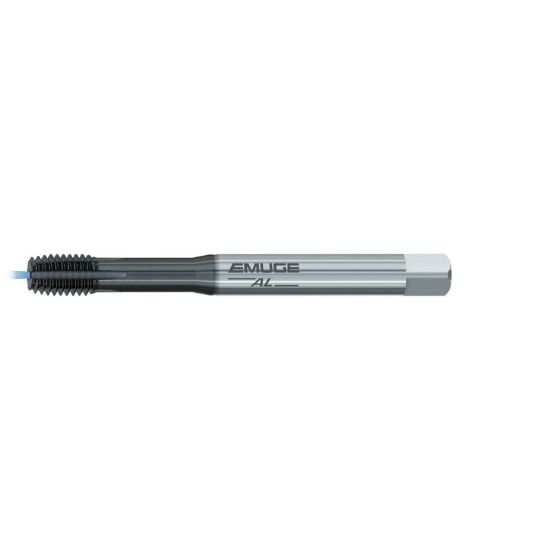

Picture of Emuge B531Y700.0050 Tap M5-0.80mm Bottoming Metric DIN/DIn 1.5P-2.0P Coolant HSSE-Powder Metal DLC

Emuge B531Y700.0050 Tap M5-0.80mm Bottoming Metric DIN/DIn 1.5P-2.0P Coolant HSSE-Powder Metal DLC

Part Number: EMUB531Y700.0050 ISO: B531Y700.0050
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
Call (262) 251-4020 for pricing
SKU: 1157214

Description

EMUGE B531Y700.0050 M5x0.80MM Roll Form Bottoming 1.5P-2.0P HSSE-PM DLC 6H Metric Steel DLC Coating stands for diamond-like carbon coating, and is a nanocomposite coating that has unique properties of natural diamond low friction, high hardness, and high corrosion resistance.
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Coolant Thru Thru Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type METRIC
Flute Direction STRAIGHT
Tap Style Roll Form
Tap Type Bottoming
Tap Chamfer 1.5P-2.0P
Dimensions & Sizing
Overall Length 2.7560 70.00MM
Shank/Pilot Dia 0.2360 5.99MM
Thread Pitch 0.80MM
Thread Size M5
Tap Drill Range 0.1807 4.59MM - 0.1850 4.70MM
Tap Square 0.1920
Performance & Capacity
Cut Rating Graphite, Aluminum, Brass, Plastic
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit 6H
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE-PM
Coating DLC
Standards & Identification
Dimension Standard DIN/DIN
