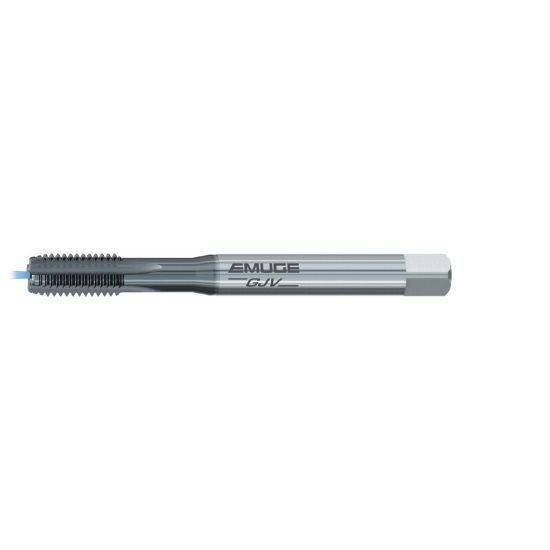

Picture of Emuge B195R501.0040 Tap Mod Bottom M4-0.70mm 6H Metric DIN/DIn Coolant HSSE TiCN

Emuge B195R501.0040 Tap Mod Bottom M4-0.70mm 6H Metric DIN/DIn Coolant HSSE TiCN

Part Number: EMUB195R501.0040

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1155569
Vendor: Sussex Tool and Supply
$0.00
High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.
Products specifications
Attribute name Attribute value
Tap Drill Range 0.1287 3.27MM - 0.1358 3.45MM
Dimension Standard DIN/DIN
Shank Or Pilot Diameter 0.1770 4.50MM - #16
Thread Limit 6H
Cutter Type Taping
Tap Square 0.1520
Length Type STANDARD
Performance Rating High Performance
Tap Style Cut Straight Flute
Overall Length 2.4803 63.00MM
Machine Side (Toolpost) TAP0.134x0.177
Cutting Edge Definition since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, V, the X component is present in excess of 7%, W or Mo, along with more than 0.60% carbon., and Co. These steels are mainly used for cutting tools
Type of Tool Tap
Machine Side (Toolpost) Connection Type Tap Collet
Shipping State MASSACHUSETTS
Family Group A-GJV Taps
Cutting Edge Material HSSE
Tool Material Steel
Coating TICN
Coolant Thru Thru Coolant
Tap Type Mod Bottom
Thread Type Metric
Made In USA No
Thread Size M4
Thread Pitch 0.70MM
Tap Chamfer 2.0P-3.0P
