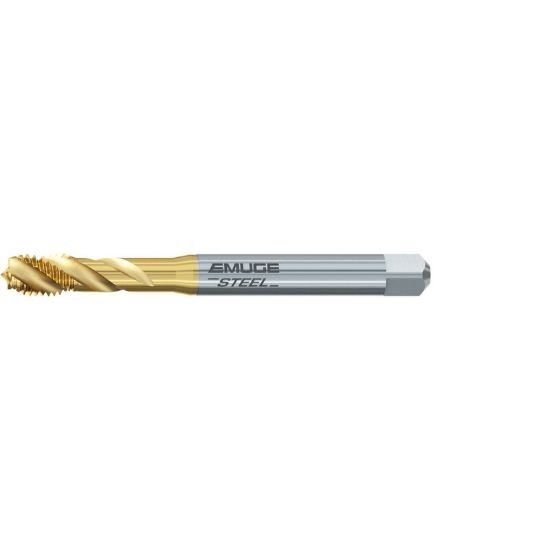

Picture of Emuge B0501400.0070 Tap M7-1.00mm Mod Bottom Metric DIN/DIn 2.0P-3.0P Cobalt HSSE TiN

Emuge B0501400.0070 Tap M7-1.00mm Mod Bottom Metric DIN/DIn 2.0P-3.0P Cobalt HSSE TiN

Part Number: EMUB0501400.0070 ISO: B0501400.0070
Looking for alternatives…
Find a drill for this tap M7 × 1.00MM
% of thread 75%
Target drill —
Drill products available across the % thread range 0 drills
50% 90%
Closest drill
—
View this drill →
Heads up: the drill list shows every drill within ±5% thread of your selection (so diameters vary across that band). Pick a drill closer to the target for higher % thread, or a larger one for easier tapping at lower %.

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1158862
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

EMUGE B0501400.0070 M7x1.00MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE TiN 6H Metric Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type METRIC
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Tap Chamfer 2.0P-3.0P
Dimensions & Sizing
Overall Length 2.7200 69.09MM
Thread Pitch 1.00MM
Thread Size M7
Tap Drill Range 0.2346 5.96MM - 0.2449 6.22MM
Tap Square 0.2380
Performance & Capacity
Cut Rating Stainless Steel, <42HRC Steel
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit 6H
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE
Coating TIN
Standards & Identification
Dimension Standard DIN/DIN
