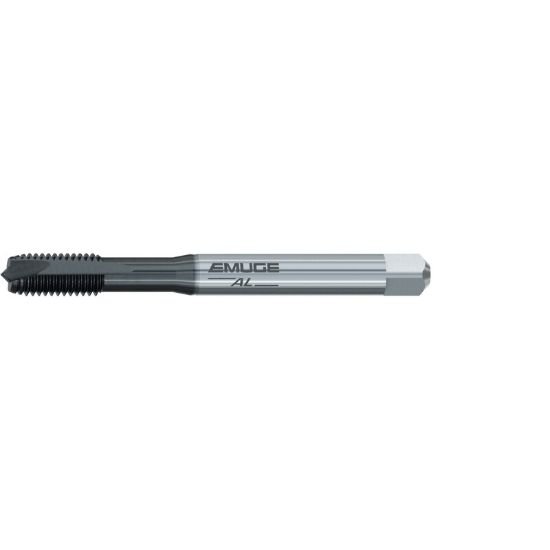

Picture of Emuge B020S800.0965 Tap M2.5-0.45mm Plug STI-M DIN/DIn 4P-5P HSS HSSE DLC

Emuge B020S800.0965 Tap M2.5-0.45mm Plug STI-M DIN/DIn 4P-5P HSS HSSE DLC

Part Number: EMUB020S800.0965

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1159149
Vendor: Sussex Tool and Supply
$0.00
High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.
Products specifications
Attribute name Attribute value
Tap Drill Range 0.1024 2.60MM
Dimension Standard DIN/DIN
Shank Or Pilot Diameter 0.1370 3.48MM
Thread Limit 6H
Cutter Type Taping
Tap Square 0.1100
Length Type STANDARD
Performance Rating High Performance
Tap Style STI
Overall Length 2.2047 56.00MM
Machine Side (Toolpost) TAP0.106x0.138
Cutting Edge Definition since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, V, the X component is present in excess of 7%, W or Mo, along with more than 0.60% carbon., and Co. These steels are mainly used for cutting tools
Type of Tool Tap
Machine Side (Toolpost) Connection Type Tap Collet
Flutes Or Inserts 2
Shipping State MASSACHUSETTS
Family Group STI Thread Taps
Cutting Edge Material HSSE
Tool Material Steel
Coating DLC
Coolant Thru Non Coolant
Tap Type Plug
Flute Direction Straight
Thread Type STI-M
Made In USA No
Thread Size M2.5
Thread Pitch 0.45MM
Tap Chamfer 4P-5P
