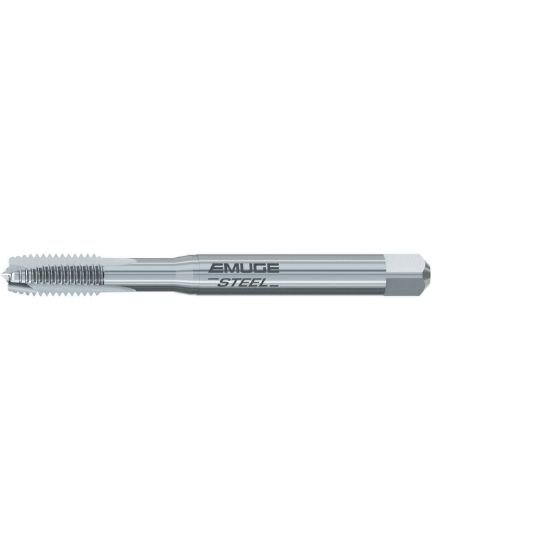

Picture of Emuge B0208930.0045 Tap Plug M4.5-0.75mm 7G Metric DIN/DIn HSSE

Emuge B0208930.0045 Tap Plug M4.5-0.75mm 7G Metric DIN/DIn HSSE

Part Number: EMUB0208930.0045 ISO: B0208930.0045
Looking for alternatives…
Find a drill for this tap M4.5 × 0.75MM
% of thread 75%
Target drill —
Drill products available across the % thread range 0 drills
50% 90%
Closest drill
—
View this drill →
Heads up: the drill list shows every drill within ±5% thread of your selection (so diameters vary across that band). Pick a drill closer to the target for higher % thread, or a larger one for easier tapping at lower %.

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1158944
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

EMUGE B0208930.0045 M4.5x0.75MM Over Sized Plug Plug 4P-5P HSSE Uncoated 7G Metric Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type METRIC
Flute Direction RIGHT
Tap Style Over Sized Plug
Tap Type Plug
Tap Chamfer 4P-5P
Dimensions & Sizing
Overall Length 2.7560 70.00MM
Shank/Pilot Dia 0.2360 5.99MM
Flutes/Inserts 3
Thread Pitch 0.75MM
Thread Size M4.5
Tap Drill Range 0.1465 3.72MM - 0.1543 3.92MM
Tap Square 0.1520
Performance & Capacity
Cut Rating Stainless Steel, <42HRC Steel
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit 7G
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE
Standards & Identification
Dimension Standard DIN/DIN
