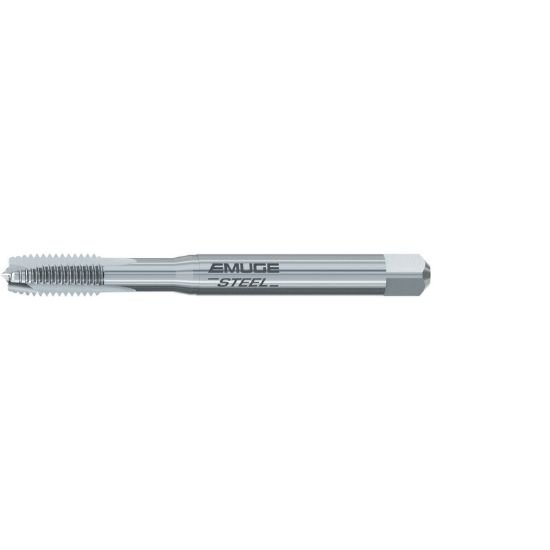

Picture of Emuge B0208930.0035 Tap Plug M3.5-0.60mm 7G Metric DIN/DIn HSSE

Emuge B0208930.0035 Tap Plug M3.5-0.60mm 7G Metric DIN/DIn HSSE

Part Number: EMUB0208930.0035 ISO: B0208930.0035
Looking for alternatives…
Find a drill for this tap M3.5 × 0.60MM
% of thread 75%
Target drill —
Drill products available across the % thread range 0 drills
50% 90%
Closest drill
—
View this drill →
Heads up: the drill list shows every drill within ±5% thread of your selection (so diameters vary across that band). Pick a drill closer to the target for higher % thread, or a larger one for easier tapping at lower %.

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1158942
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

EMUGE B0208930.0035 M3.5x0.60MM Over Sized Plug Plug 4P-5P HSSE Uncoated 7G Metric Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type METRIC
Flute Direction RIGHT
Tap Style Over Sized Plug
Tap Type Plug
Tap Chamfer 4P-5P
Dimensions & Sizing
Overall Length 2.2047 56.00MM
Shank/Pilot Dia 0.1570 3.99MM - #22
Flutes/Inserts 3
Thread Pitch 0.60MM
Thread Size M3.5
Tap Drill Range 0.1134 2.88MM - 0.1193 3.03MM
Tap Square 0.1100
Performance & Capacity
Cut Rating Stainless Steel, <42HRC Steel
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit 7G
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE
Standards & Identification
Dimension Standard DIN/DIN
