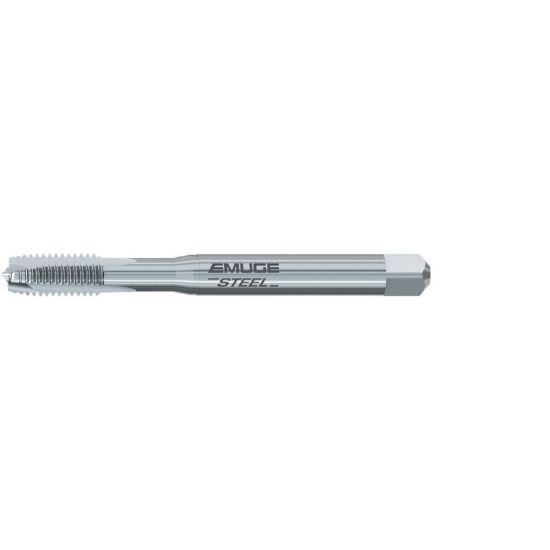

Picture of Emuge B0208920.0030 Tap Plug M3-0.50mm 6G Metric DIN/DIn HSSE

Emuge B0208920.0030 Tap Plug M3-0.50mm 6G Metric DIN/DIn HSSE

Part Number: EMUB0208920.0030 ISO: B0208920.0030

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1158903
Vendor: Sussex Tool and Supply
$41.26
EMUGE B0208920.0030 M3x0.50MM Over Sized Plug Plug 4P-5P HSSE Uncoated 6G Metric Steel
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Taping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating Stainless Steel, <42HRC Steel
Overall Length 2.2047 56.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1370 3.48MM
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 0.50MM
Thread Type METRIC
Flute Direction STRAIGHT
Thread Size M3
Thread Limit 6G
Tap Style Over Sized Plug
Tap Type Plug
Dimension Standard DIN/DIN
Tap Drill Range 0.0976 2.48MM - 0.1028 2.61MM
Tap Square 0.1100
Tap Chamfer 4P-5P
