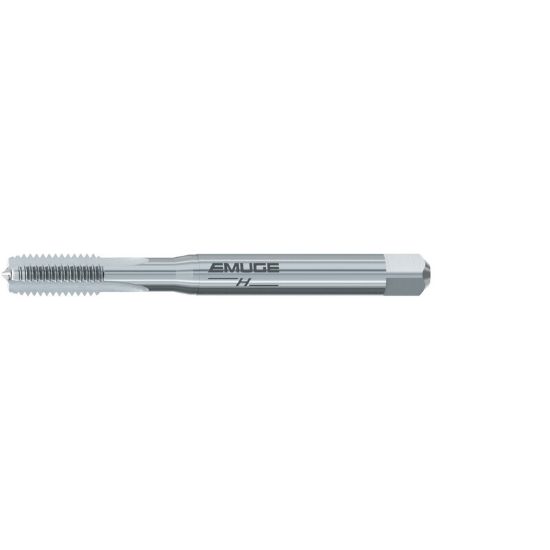

EMUGE B0100501.0030 Tap M3-0.50MM Mod Bottom Metric DIN/DIN 2.0P-3.0P No Coolant HSSE Nitride

ISO: B0100501.0030

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUB0100501.0030
Delivery date: 3-5 days
$41.75
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

iquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.

Products specifications
Attribute name Attribute value
General Product Information
Material # Material#10T, Material#10, Material#10I
Package Size 1
Application Tapping, Blind Hole Tapping, Mod Bottom Tapping, Cut Tapping
Performance Rating High Performance
Sold by Pieces 1
Additional Key Information 1 Tapping
Coating Nitride
Shipping State Massachusetts
Uncategorized
Made In USA No
Dimensional Specifications
Thread Pitch 0.50MM
Flute Direction STRAIGHT
Machine Side Connection Type Tap Collet
Tap Square 0.1100
Length Type Standard
Tap Chamfer 2.0P-3.0P
Thread Size M3
Shank/Pilot Dia 0.1370 3.48MM
Thread Type Metric
Cut Rating High Temp, Inconel, Titanium
Dimension Standard DIN/DIN
Overall Len 2.2047 56.00MM
Flutes/Inserts 3
Tool Material Steel
Thread Limit 6H
Machine Side TAP0.106x0.138
Drill Range 0.0976 2.48MM - 0.1028 2.61MM
Tap Type Mod Bottom
Tap Style Cut Straight Flute
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Automotive Yes
Job Shop Yes
Mold Yes
Energy Yes
