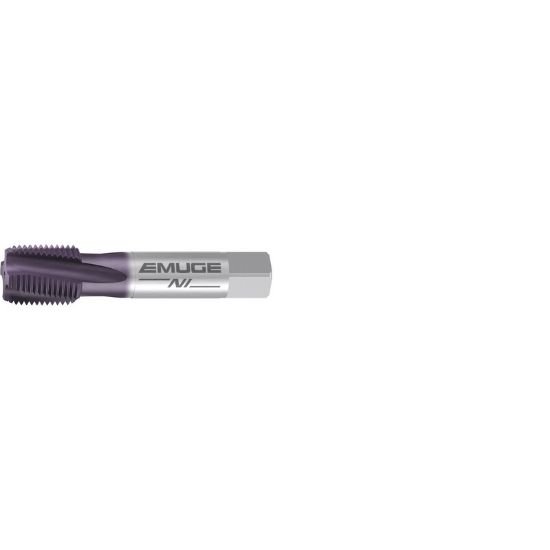

Picture of Emuge AW79J400.5791 Tap 2-11.50TPI Pipe NPT/NPTF/ANPT ANSI/ANSI 2.0P-3.0P HSSE TiCN

Emuge AW79J400.5791 Tap 2-11.50TPI Pipe NPT/NPTF/ANPT ANSI/ANSI 2.0P-3.0P HSSE TiCN

Part Number: EMUAW79J400.5791 ISO: AW79J400.5791
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$1,753.24
SKU: 1158105

Description

EMUGE AW79J400.5791 2"x11.50TPI Pipe Spiral Flute Pipe 2.0P-3.0P HSSE TiCN PIPE NPT/NPTF/ANPT Steel Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NPT/NPTF/ANPT
Flute Direction RIGHT
Tap Style Pipe Spiral Flute
Tap Type Pipe
Tap Chamfer 2.0P-3.0P
Dimensions & Sizing
Overall Length 4.5000 114.30MM
Shank/Pilot Dia 1.8750 47.63MM - 1-7/8
Flutes/Inserts 6
Thread Pitch 11.50TPI
Thread Size 2"
Tap Drill Range 2.1874 55.56MM
Tap Square 1.4060
Performance & Capacity
Cut Rating High Temp, Inconel, Titanium
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit PIPE
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE
Coating TICN
Standards & Identification
Dimension Standard ANSI/ANSI
