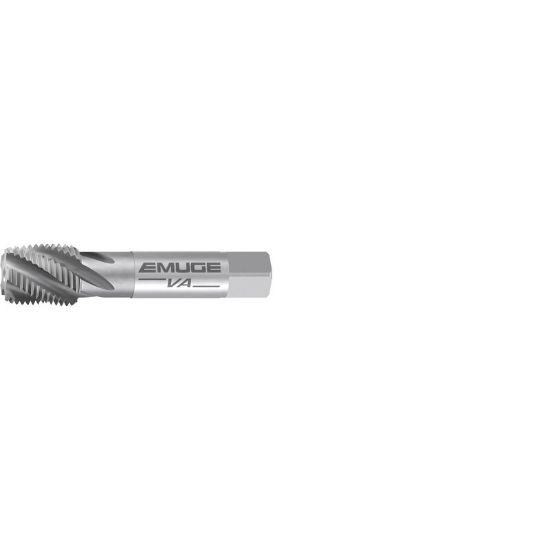

Picture of Emuge AW483000.5790 Tap 1-1/2-11.50TPI Pipe NPT/NPTF/ANPT ANSI/ANSI 2.0P-3.0P HSSE

Emuge AW483000.5790 Tap 1-1/2-11.50TPI Pipe NPT/NPTF/ANPT ANSI/ANSI 2.0P-3.0P HSSE

Part Number: EMUAW483000.5790 ISO: AW483000.5790
Looking for alternatives…
Find a drill for this tap 1-1/2" × 11.50TPI
% of thread 75%
Target drill —
Drill products available across the % thread range 0 drills
50% 90%
Closest drill
—
View this drill →
Heads up: the drill list shows every drill within ±5% thread of your selection (so diameters vary across that band). Pick a drill closer to the target for higher % thread, or a larger one for easier tapping at lower %.

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1157958
Vendor: Sussex Tool and Supply
$867.55

Description

EMUGE AW483000.5790 1-1/2"x11.50TPI Pipe Spiral Flute Pipe 2.0P-3.0P HSSE Uncoated PIPE NPT/NPTF/ANPT Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NPT/NPTF/ANPT
Flute Direction RIGHT
Tap Style Pipe Spiral Flute
Tap Type Pipe
Tap Chamfer 2.0P-3.0P
Dimensions & Sizing
Overall Length 4.2520 108.00MM
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Flutes/Inserts 5
Thread Pitch 11.50TPI
Thread Size 1-1/2"
Tap Drill Range 1.7177 43.63MM
Tap Square 1.1250
Performance & Capacity
Cut Rating Stainless Steel, <40HRC Steel
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit PIPE
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE
Standards & Identification
Dimension Standard ANSI/ANSI
