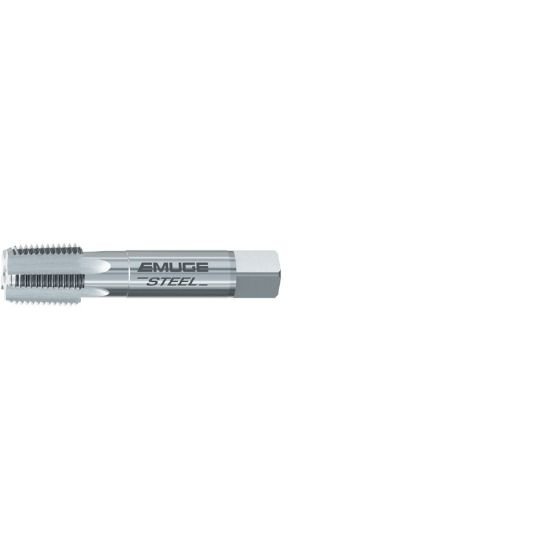

Picture of Emuge AW181000.5772 Tap 2-11.50TPI Pipe NPT/NPTF/ANPT ANSI/ANSI 2.0P-3.0P HSSE

Emuge AW181000.5772 Tap 2-11.50TPI Pipe NPT/NPTF/ANPT ANSI/ANSI 2.0P-3.0P HSSE

Part Number: EMUAW181000.5772

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1158001
Vendor: Sussex Tool and Supply
$665.14
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Cutter Type Taping
Made In USA No
Cutting Edge Definition High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.
Cutting Edge Material HSSE
Tool Material Steel
Machine Side (Toolpost) TAP1.406x1.875
Machine Side (Toolpost) Connection Type Tap Collet
Overall Length 4.5000 114.30MM
Shank Or Pilot Diameter 1.8750 47.63MM - 1-7/8
Family Group Pipe Taps
Coolant Thru Non Coolant
Flutes Or Inserts 7
Type of Tool Tap
Length Type Standard
Performance Rating High Performance
Thread Pitch 11.50TPI
Thread Type NPT/NPTF/ANPT
Flute Direction Straight
Thread Size 2"
Tap Style Pipe Straight Flute
Tap Type Pipe
Thread Limit PIPE
Dimension Standard ANSI/ANSI
Tap Drill Range 2.1874 55.56MM
Tap Square 1.4060
Tap Chamfer 2.0P-3.0P
