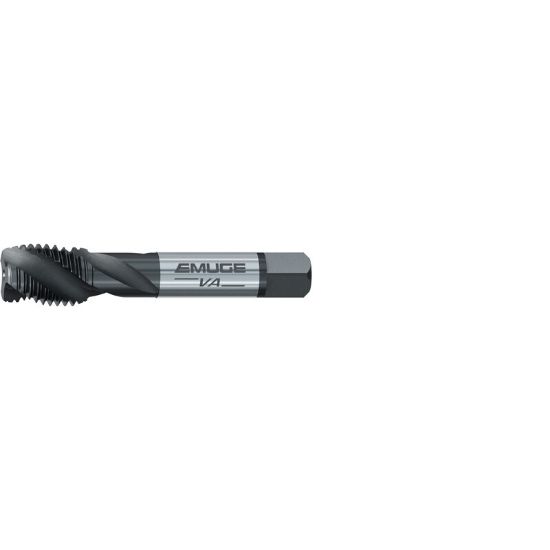

EMUGE AU503200.5005 Tap Mod Bottom No.6-32.00TPI 2B NC/UNC ANSI/ANSI No Coolant HSSE Oxide + TiN

ISO: AU503200.5005

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUAU503200.5005
Delivery date: 3-5 days
$41.88
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

TiN is a clear step up from even high quality oxide coating. Its around 20% harder, and is significantly smoother and resistant to BUE

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Massachusetts
Package Size 1
Sold by Pieces 1
Application Mod Bottom Tapping, Cut Tapping, Tapping
Coating Oxide + TiN
Material # Material#3, Material#8
Additional Key Information 1 Tapping
Performance Rating High Performance
Uncategorized
Made In USA No
Dimensional Specifications
Tap Style Cut Spiral Flute
Tap Chamfer 2.0P-3.0P
Thread Limit 2B
Cut Rating <42HRC Steel, Stainless Steel
Machine Side TAP0.110x0.140
Shank/Pilot Dia 0.1410 3.58MM
Tool Material Steel
Overall Len 2.0000 50.80MM
Tap Square 0.1100
Thread Type NC/UNC
Flute Direction R - Right
Length Type Standard
Thread Size No.6
Flutes/Inserts 3
Drill Range 0.1051 2.67MM - 0.1134 2.88MM
Thread Pitch 32.00TPI
Dimension Standard ANSI/ANSI
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
